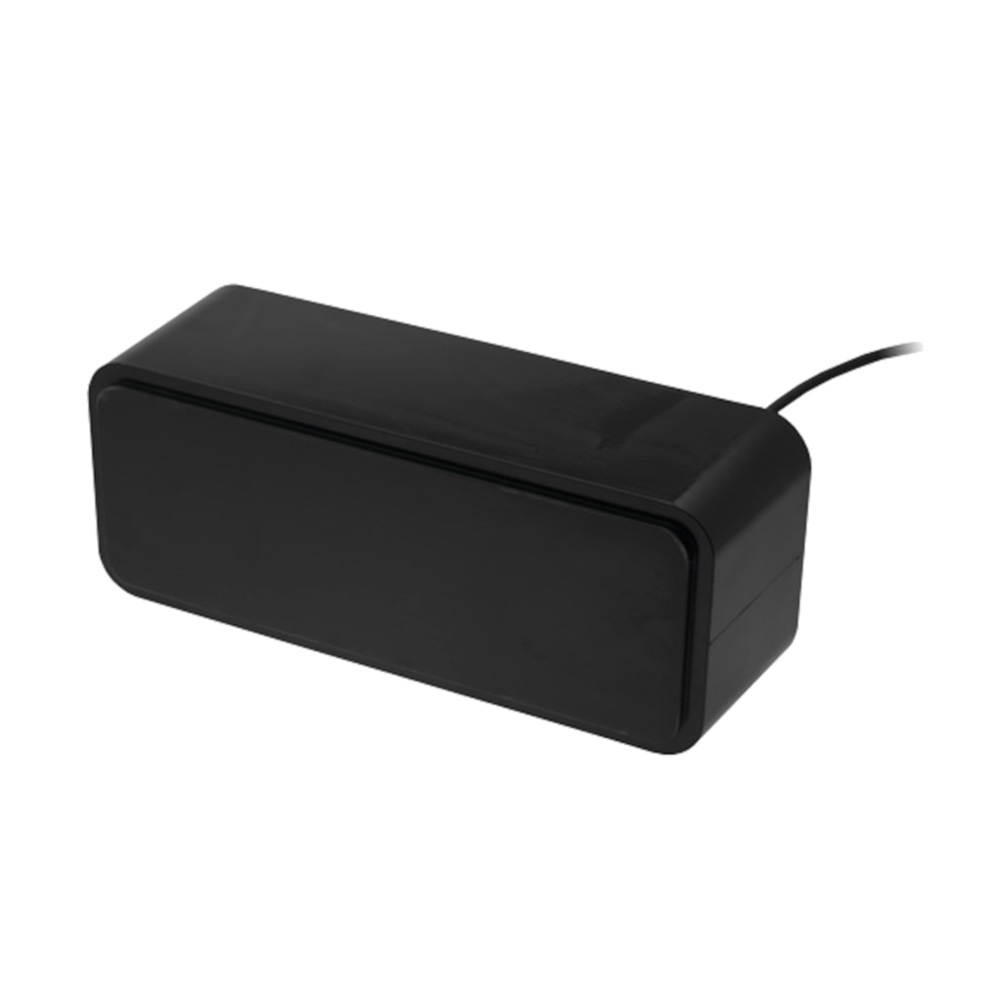

CM599LH 1-3kW Pocket Mounted Transducer – No Connector

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low and high-frequency transducer. The Chirp-ready CM599LH gives the deep-water performance of the low frequency down to 3000 m (10000) plus the incredible resolution that the high-frequency band delivers.

The CM599LH is packed with a twenty-four-element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8 to 4, beamwidth.

Features:

• Depth and fast-response water-temperature sensing
• 2 to 3 kW of power for exceptional deep-water performance
• Low frequency: 28 to 60 kHz
• 23 to 9 port-starboard beamwidth
• 11 to 5 fore-aft beamwidth
• Maximum depth to 3048 m (10000)
• High frequency: 130 to 210 kHz
• 8 to 4 beamwidth
• Maximum depth to 457 m (1500)
• 112 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Resin housing with curved-edge design for wet-box installation
• Can be installed in a cavity or welded tank
• Also available as thru-hull external (R509LH) and in-hull (R599LH) mounts
• Patented Xducer ID technology

Specifications:

• Frequency Band: Low-High
• Functions:Depth, Temperature
• Material:Urethane
• Mounting Style:Tank, Cavity, Pocket/Keel Mount
• Connector:Bare Wire
• Display Connector:0
• Hull Material:Fiberglass or metal
• Max Vessel LOA:8 m (25) and above
• High Frequency:130-210 kHz
• Common Use:Fishing, Commercial Fishing
• Max Deadrise Angle:Any
• Tilted Element:No
• Low Frequency Beamwidth:11×23-5×9
• Low Frequency:28-60 kHz
• High Frequency Beamwidth:8-4
• Max Deadrise:Accommodates any deadrise angle based on custom installation
• Power Rating:2-3 kW
• Single or Dual Frequency:CHIRP-Ready Dual-Band
• Country of Origin:USA
• Cable-Length:15 m (49)
• Weight:14.2 kg (31.2 lb.)
• Max Depth: Low frequency- 3048 m (10000), High frequency- 457 m (1500)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
