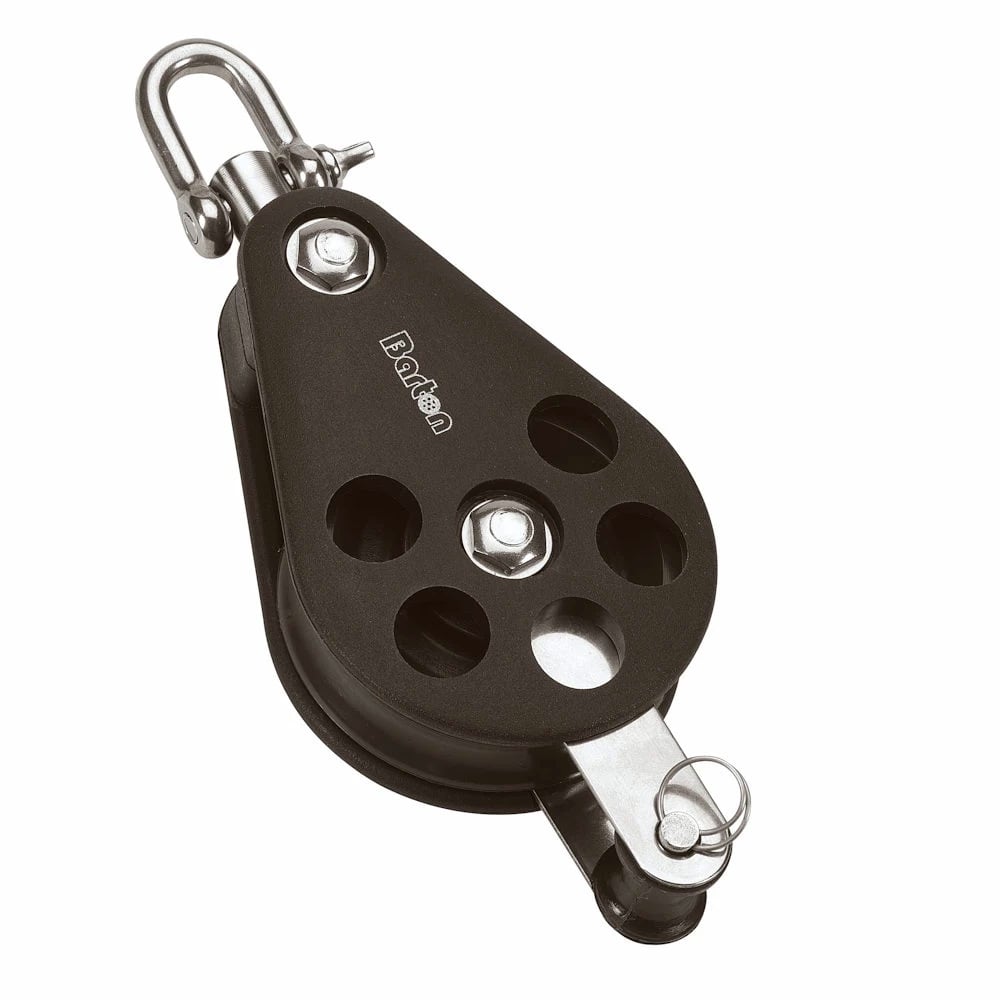

Barton Size 5 54mm Plain Bearing Pulley Block Single Swivel & Becket
$64.65
PRODUCT DETAILS
Size 5 54mm Plain Bearing Pulley Block Single Swivel Becket
The Size 5 Barton range of blocks has a 54mm 2 1/8 sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.
Suitable for up to 12mm 7/16 rope.
Specifications:
- Weight: 220 g
- Dimensions: 150 58 37 mm
- Size: 5 (54MM)
- Block Type: Swivel + Becket
- No. of Sheaves: Single
- Bearing Type: Plain
- Sheave Size: 54mm x 17mm (2 1/8 x 5/8)
- Max rope diameter: 12mm (7/16)
- SWL: 750kg (1650lbs)
- Break load: 1500kg (3300lbs)
- Max rolling load (ball bearing blocks): 525kg (1157lbs)
SPECIFICATIONS
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1 in |
| truck_freight | No |
| oversized | No |
| upc | 5035088081271 |
| brand | Barton Marine |
| part_number | 111837 |
Customer Reviews
Size 5 54mm Plain Bearing Pulley Block Single Swivel Becket
The Size 5 Barton range of blocks has a 54mm 2 1/8 sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.
Suitable for up to 12mm 7/16 rope.
Specifications:
- Weight: 220 g
- Dimensions: 150 58 37 mm
- Size: 5 (54MM)
- Block Type: Swivel + Becket
- No. of Sheaves: Single
- Bearing Type: Plain
- Sheave Size: 54mm x 17mm (2 1/8 x 5/8)
- Max rope diameter: 12mm (7/16)
- SWL: 750kg (1650lbs)
- Break load: 1500kg (3300lbs)
- Max rolling load (ball bearing blocks): 525kg (1157lbs)
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1 in |
| truck_freight | No |
| oversized | No |
| upc | 5035088081271 |
| brand | Barton Marine |
| part_number | 111837 |
