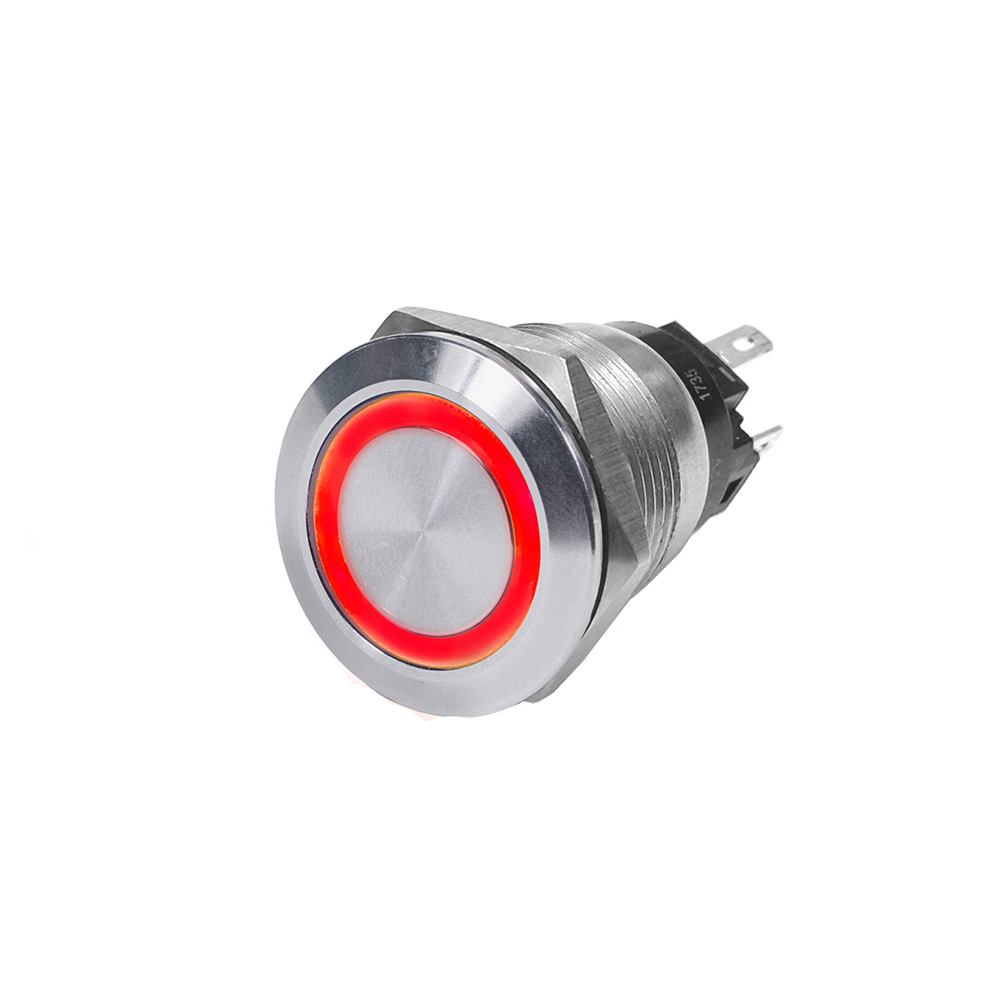

Blue Sea 4163 SS Push Button Switch – Off-(On) – Red – 10A
$35.95
PRODUCT DETAILS
4163 SS Push Button Switch – Off-(On) – Red – 10A
- 10A continuous
- Single Pole Double Throw or Single Pole Single Throw
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
Specifications
- Action: OFF-(ON)
- Amperage: 10A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum LED Operating Current: 20mA
- Minimum Operating Temperature: -10 C
- Maximum Operating Temperature: 70 C
- Minimum Storage Temperature: -55 C
- Maximum Storage Temperature: 85 C
- Illumination: Independent Separate contacts for LED power
- Mounting Hole: 19mm
- Switching Cycles: 18,000
- Termination: 5 0.110inch Quick Connect terminals
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SPECIFICATIONS
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 3 × 3 × 2 in |
| truck_freight | No |
| oversized | No |
| upc | 632085041632 |
| brand | Blue Sea Systems |
| part_number | 4163 |
