Blue Sea 4180 Backlit Push Button Switch OFF/ON – 15A
$76.95
PRODUCT DETAILS
4180 Backlit Push Button Switch OFF/ON – 15A
Features:

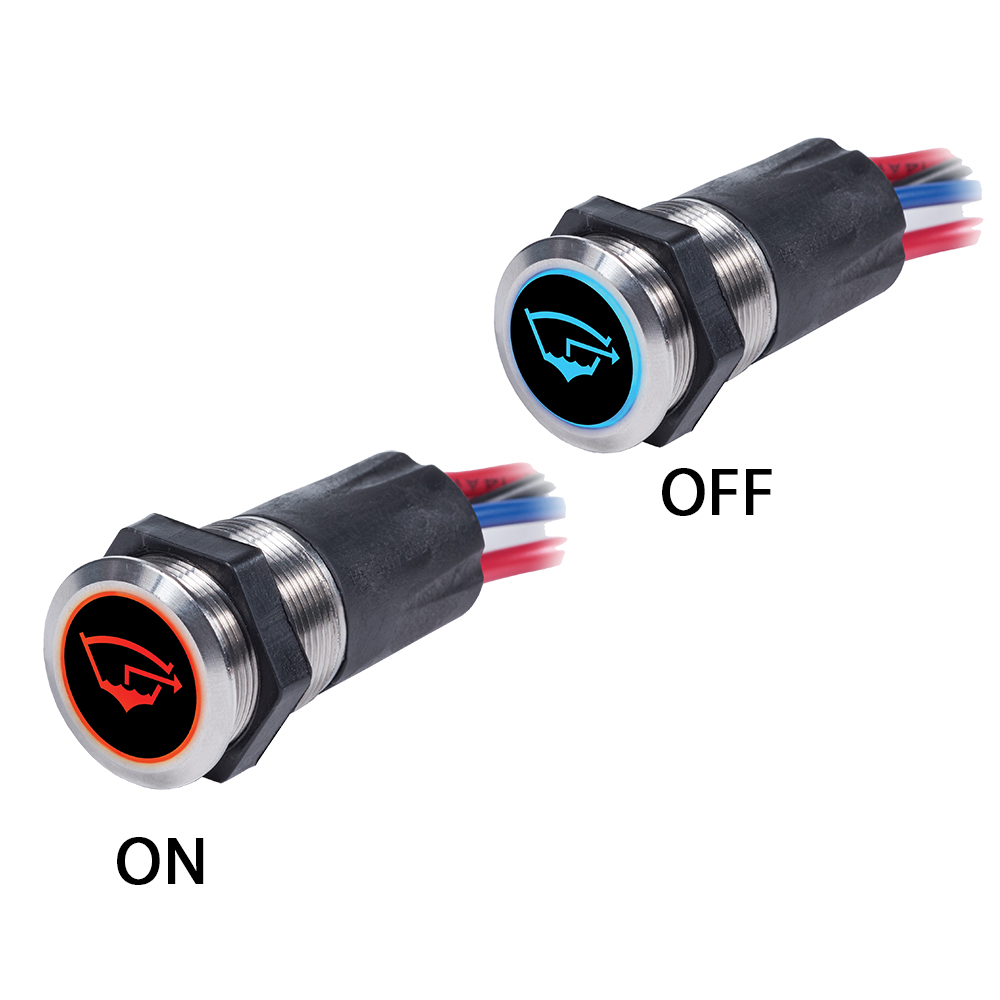

- Backlit button is blue when OFF and red when ON
- Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
- Additional 50 ICON label kit sold separately
Specifications:
- Action: OFF-ON
- Amperage: 15A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum Voltage: 15V DC
- Maximum LED Operating Current: 20mA
- Switching Cycles: 10,000
- Temperature Range: -20C to 55C
- Termination: 3″ – Bare Wire Pigtail
- Wire Size: Black Blue Wires 18 AWG / Red Red/White Wires 14AWG
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SPECIFICATIONS
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 3 × 3 × 2 in |
| truck_freight | No |
| oversized | No |
| upc | 632085041809 |
| brand | Blue Sea Systems |
| part_number | 4180 |
