Blue Sea 5023 ST-Blade Battery Terminal Mount Fuse Block
$37.95
PRODUCT DETAILS

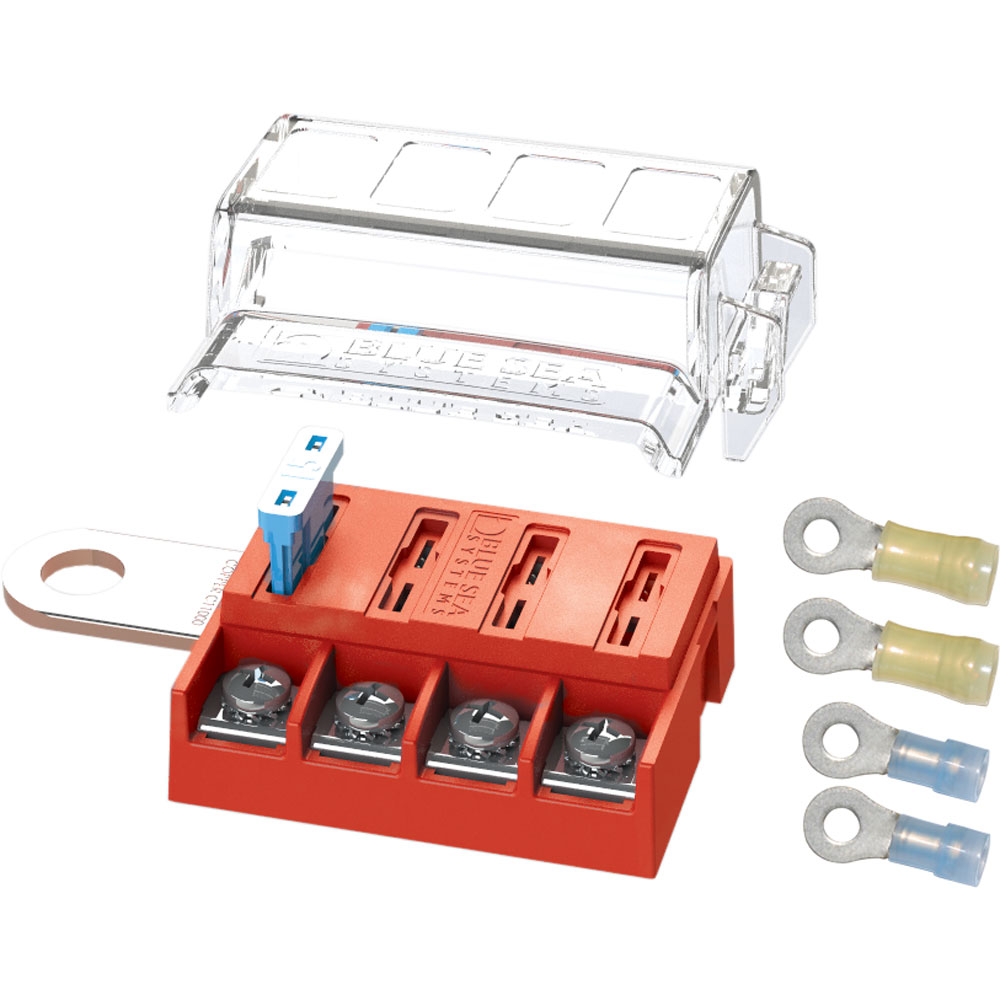

ST-Blade Battery Terminal Mount Fuse Block
Features:
- Easy to install 4 ATO/ATC fused circuits
- Mounts on the battery terminal stud
- Screw terminals for securing wires
- Four Nylon insulated ring terminals included
- Insulating cover included
- Accepts Small Format Circuit Labels
- Includes 1 fuse
Specifications:
- Circuits: 4
- Maximum Amperage: 100A per block, 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: Clearance for 3/8″ [M10] stud
- Screw Terminal Type: #8-32 Screws with captive star lock washer
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SPECIFICATIONS
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
| truck_freight | No |
| oversized | No |
| upc | 632085050238 |
| brand | Blue Sea Systems |
| part_number | 5023 |
