Blue Sea 5050 ST CLB Circuit Breaker Block – 6 Position
$61.95
PRODUCT DETAILS

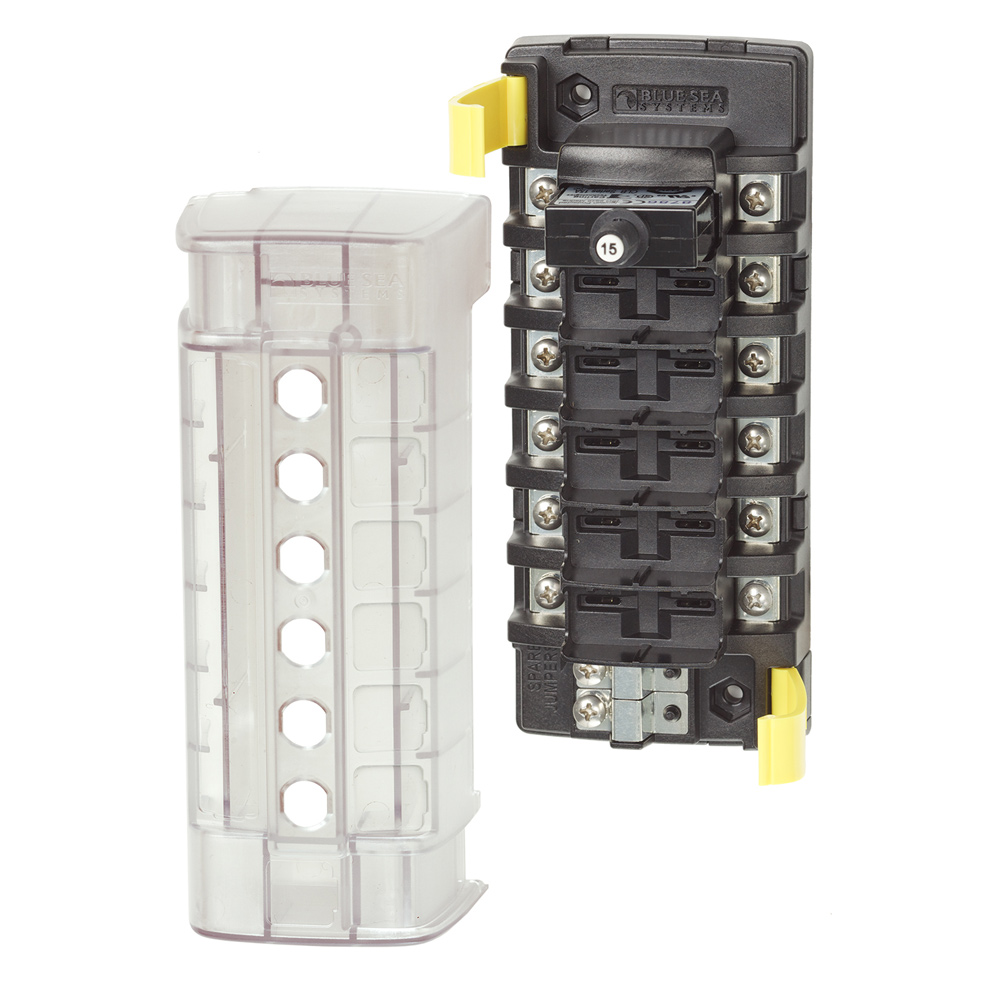

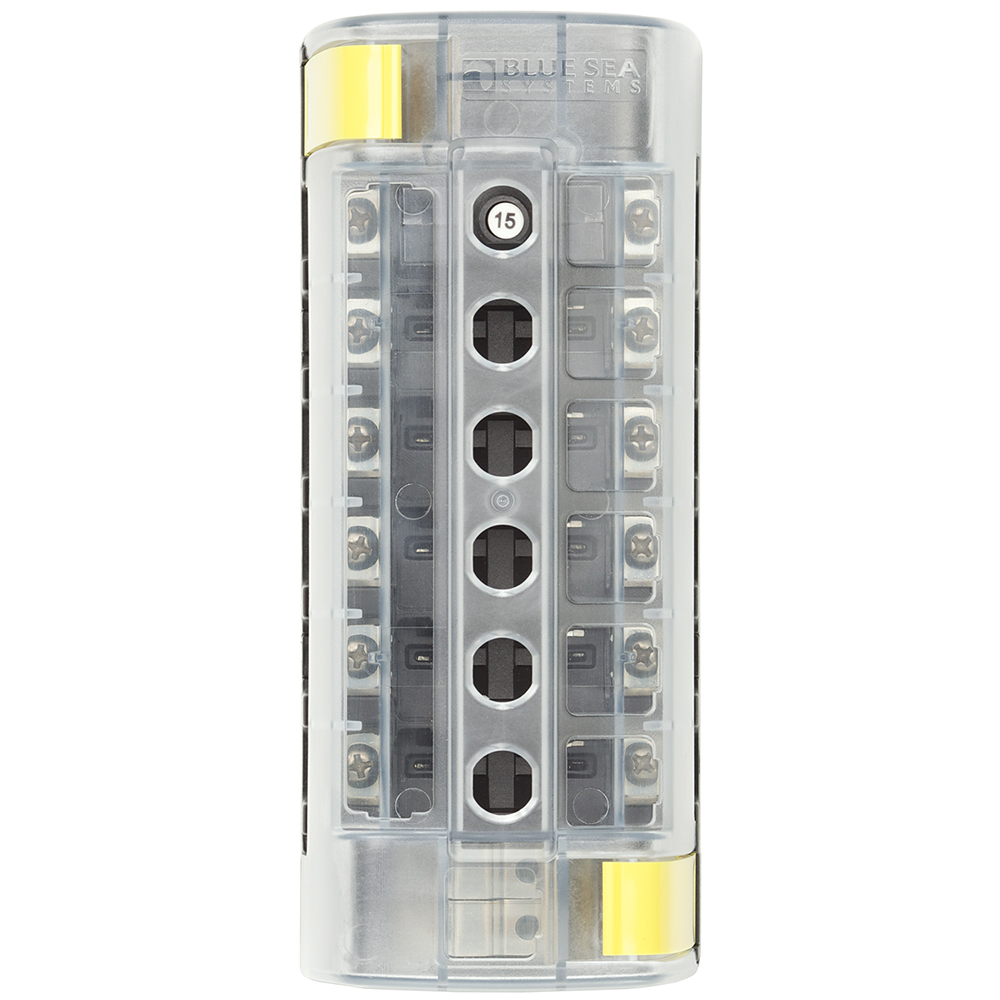

ST CLB Circuit Breaker Block – 6 Position
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications:
Circuits: 6
Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent SourceMinimum Operating Temperature: -10 C
Maximum Operating Temperature: 60 C
Mounting Centers: 5.63″(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69″(169.93 mm)
Weight: 0.75lb (0.34 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SPECIFICATIONS
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 5 × 5 × 3 in |
| truck_freight | No |
| oversized | No |
| upc | 632085050504 |
| brand | Blue Sea Systems |
| part_number | 5050 |
