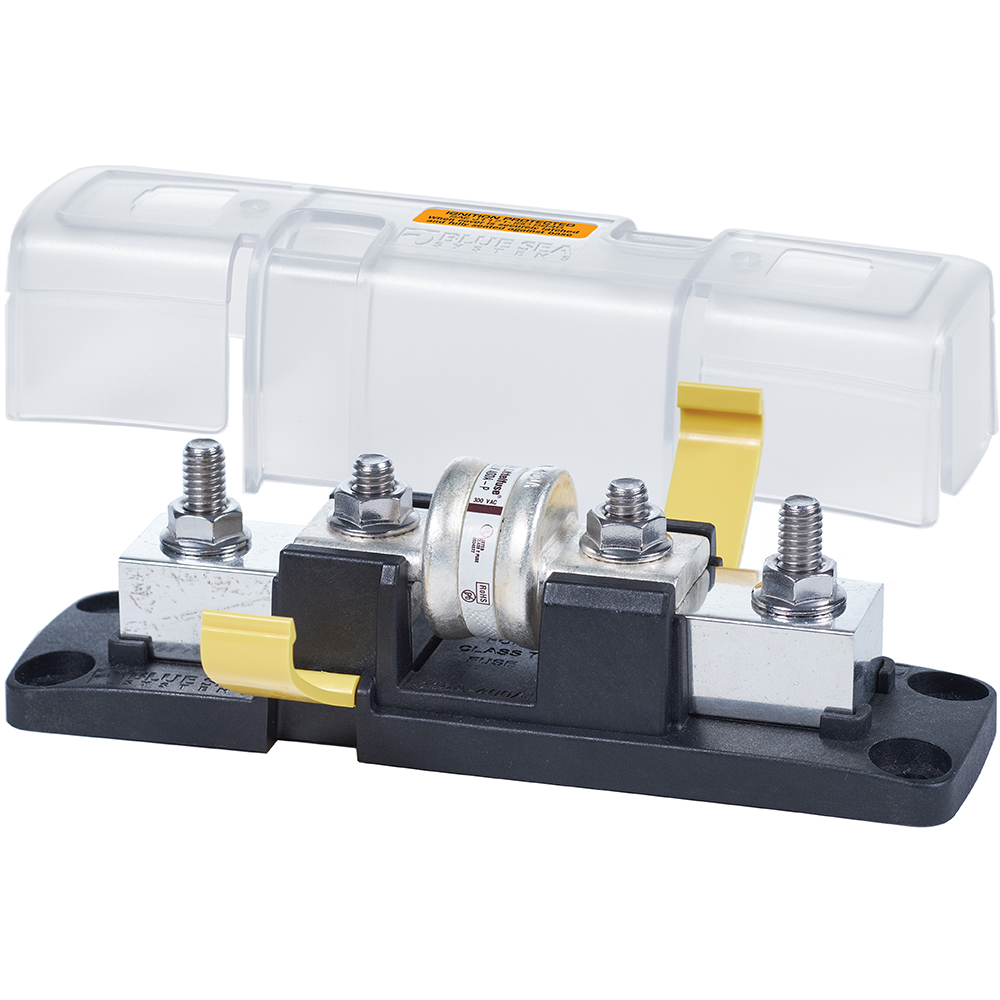

Blue Sea 5502100 Class T Fuse Block w/Insulating Cover – 225 to 400A
$99.95
PRODUCT DETAILS
Class T Fuse Block with Insulating Cover – 225 to 400A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
Technical Specifications:
- Cable Size: Up to 4/0 AWG
- Ignition Protected: Yes
- Maximum Amperage: 320A
- Maximum Voltage: 160V DC
- Fuse Mounting Blocks: Tin-Plated Copper
- Terminal Stud Size: 5/16″-18 (M8)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SPECIFICATIONS
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 8 × 8 × 3 in |
| truck_freight | No |
| oversized | No |
| upc | 632085550219 |
| brand | Blue Sea Systems |
| part_number | 5502100 |
