Blue Sea 6010200 Battery Switch Dual Circuit – Black
$62.95
PRODUCT DETAILS

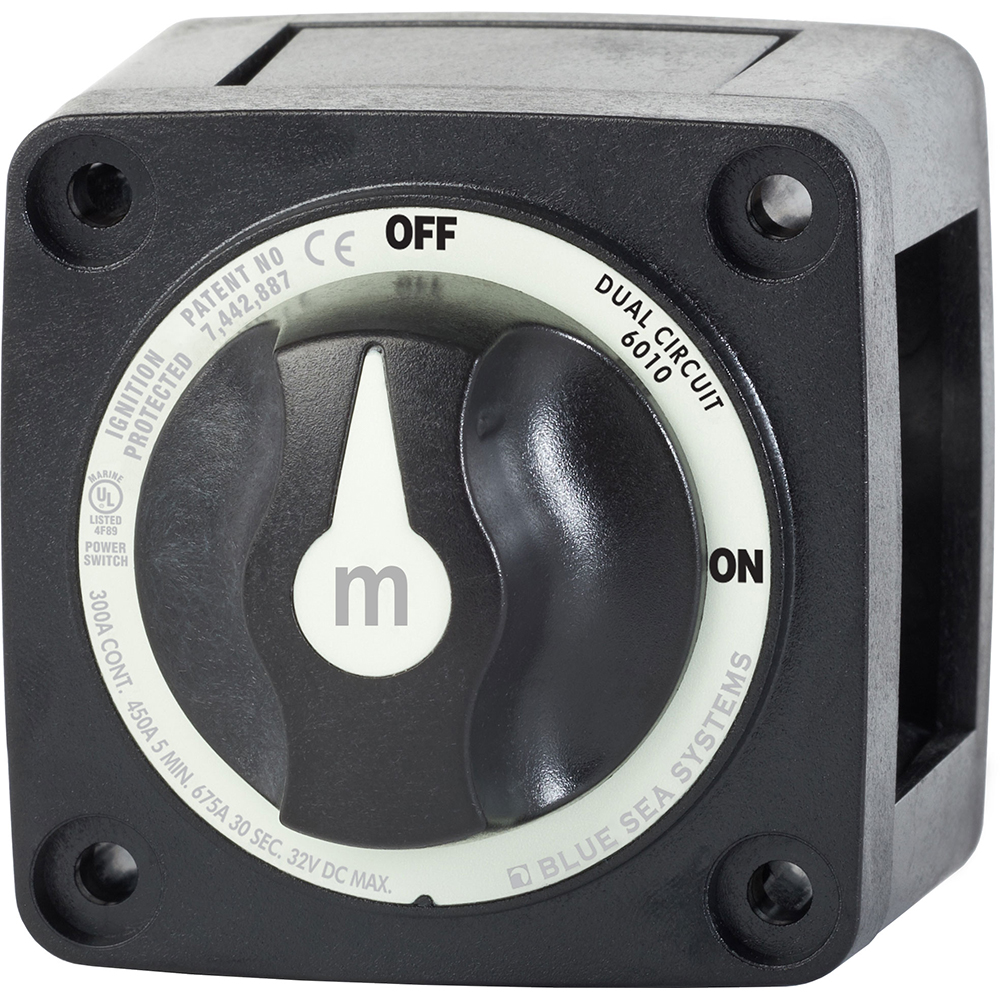

m-Series Mini Dual Circuit Battery Switch – Black
Simultaneously switches two isolated battery banks.
Switch Type: Dual Circuit
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm)
Mounting Holes: Accept #10 Screw

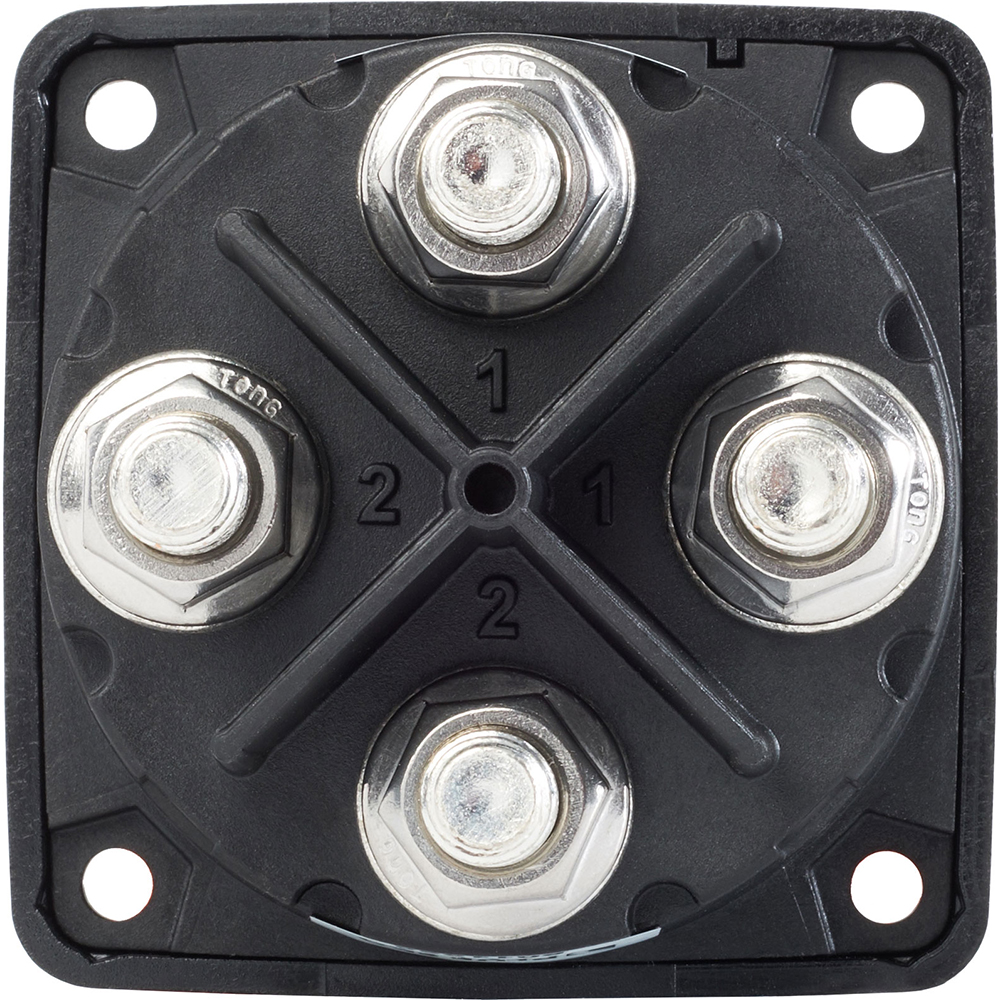

Terminal Stud Size: 3/8″-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SPECIFICATIONS
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 4 × 4 × 3 in |
| truck_freight | No |
| oversized | No |
| owners_manual_url | https://productimageserver.com/literature/ownersManual/49218OM.pdf |
| upc | 632085601027 |
| brand | Blue Sea Systems |
| part_number | 49218 |
