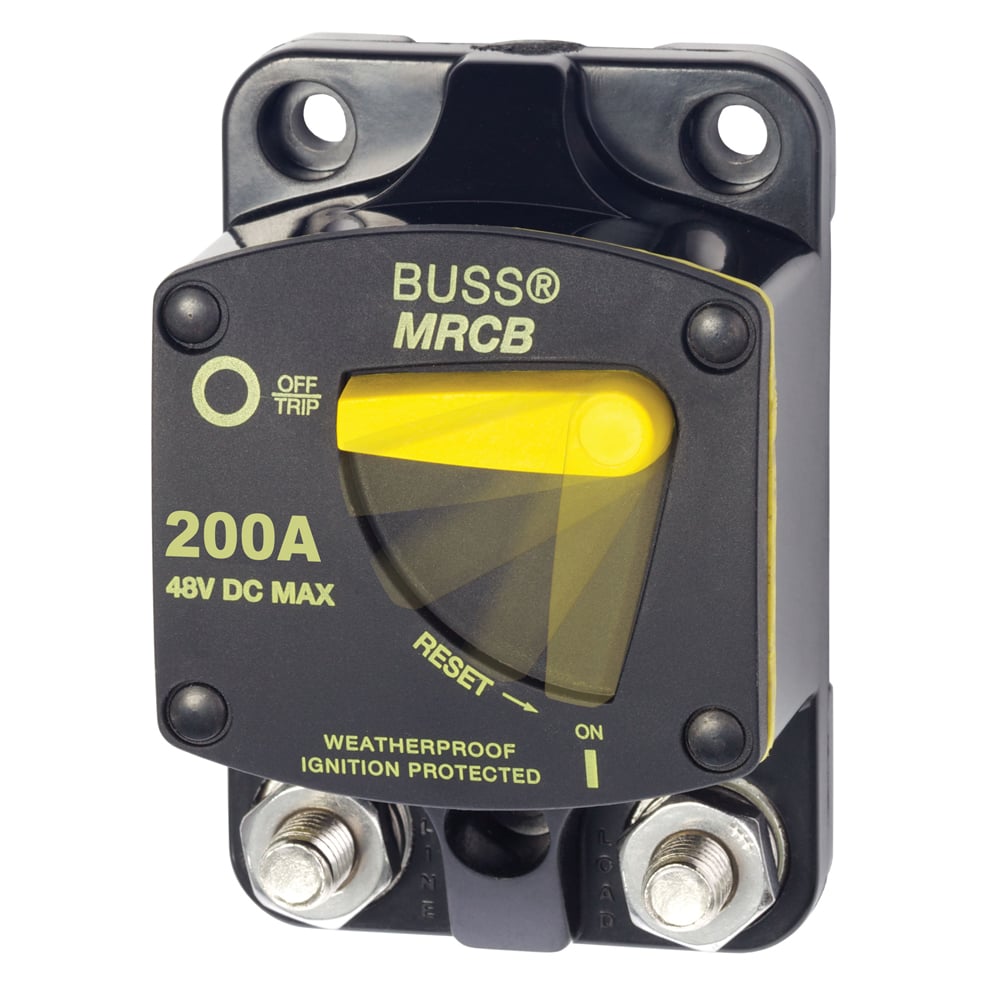

Blue Sea 7149 200 Amp Circuit Breaker – Surface Mount
$126.95
PRODUCT DETAILS
187-Series Circuit Breaker – Surface Mount 200A
- Combines switching and circuit protection into a single device*
- Clear, single lever operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large Clearance around terminal studs accecpt heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected – Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
* Do not use as a switch where high inrush currents are expected.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SPECIFICATIONS
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
| truck_freight | No |
| oversized | No |
| upc | 632085171490 |
| brand | Blue Sea Systems |
| part_number | 7149 |
