Blue Sea 7615 ATD Automatic Timer Disconnect
$131.95
PRODUCT DETAILS

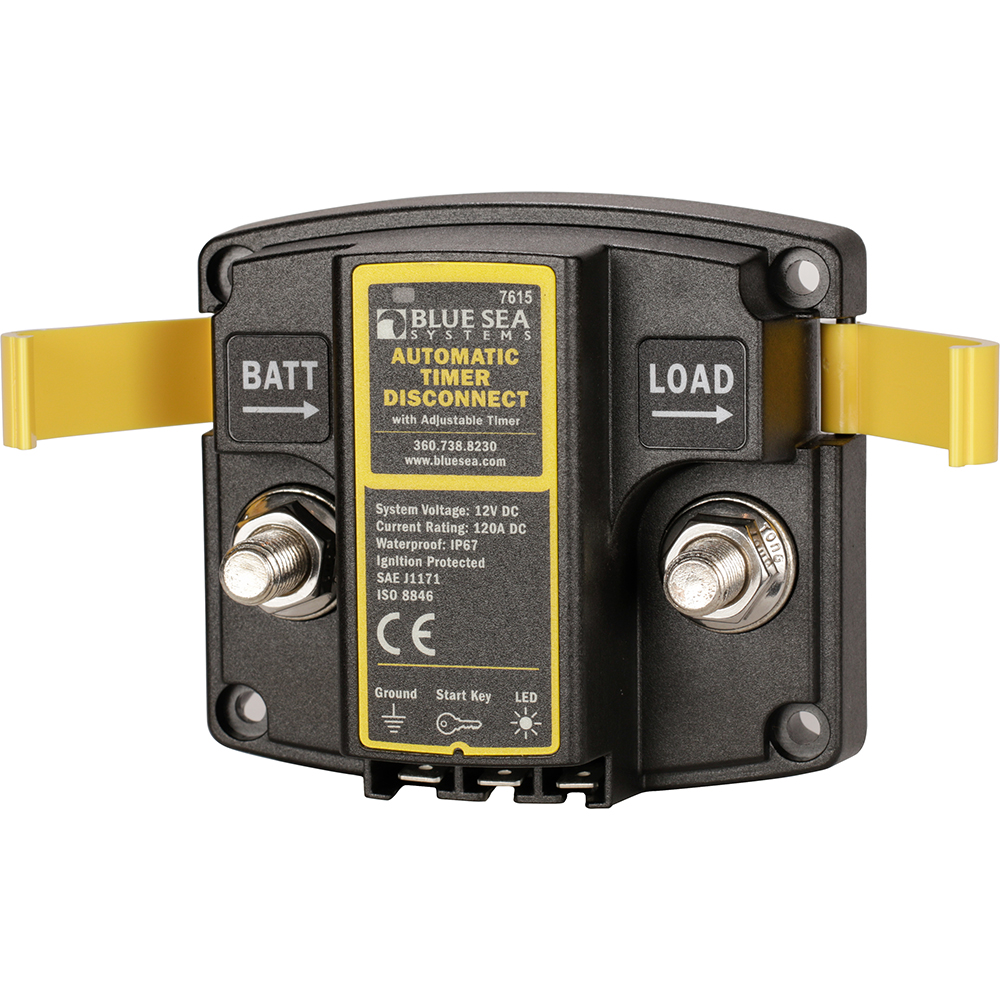

ATD Automatic Timer Disconnect
Adjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power
- 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time
- Disconnect can be triggered based on time, low voltage, or removal of 12V signal
- Low voltage will disconnect if time hasn_t been reached to preserve battery power
- Time and voltage options can be turned off to allow 12V signal based disconnect
- Clip-on cover insulates terminal connections
- One-piece stainless flange nuts ensure safe and secure connections
- Integrated LED indicates status
Specifications:
- Nominal Voltage:12V DC
- Amperage Operating Current: 175mA(Combine / 15mA(Open)
- Continuous Rating:120A
- Intermittent Duty: 210
- Terminal Stud Size: 3/8″-16 (M10)
- Time Range: 15min-4hrs
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SPECIFICATIONS
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 6 × 3 in |
| truck_freight | No |
| oversized | No |
| owners_manual_url | https://productimageserver.com/literature/ownersManual/64363OM.pdf |
| upc | 632085076153 |
| brand | Blue Sea Systems |
| part_number | 7615 |
