APK 10 Autopilot Keyboard – Horizontal

GAIN PRECISE CONTROL OF YOUR AUTOPILOT

Get easy-to-use control of your Reactor 40 autopilot, and put simple, intuitive knob and button activation, heading changes, and more at your fingertips.

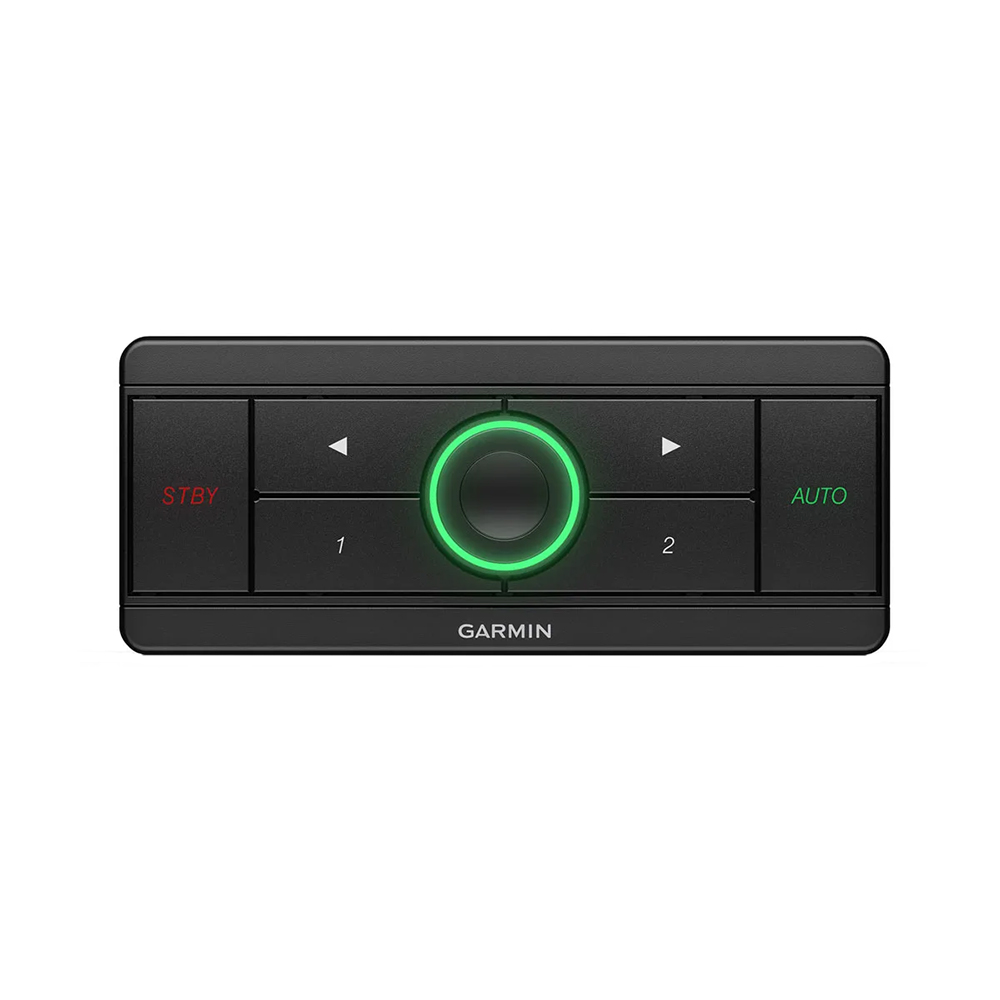

Rotary Knob

The LED-encircled knob provides precise heading control and colored reference of autopilot status.

Autopilot Buttons

Dedicated engage and standby buttons make starting and stopping your autopilot easy.

Multipurpose Buttons

Add more autopilot control functions based on your vessel type and setup preferences.

Simple Installation

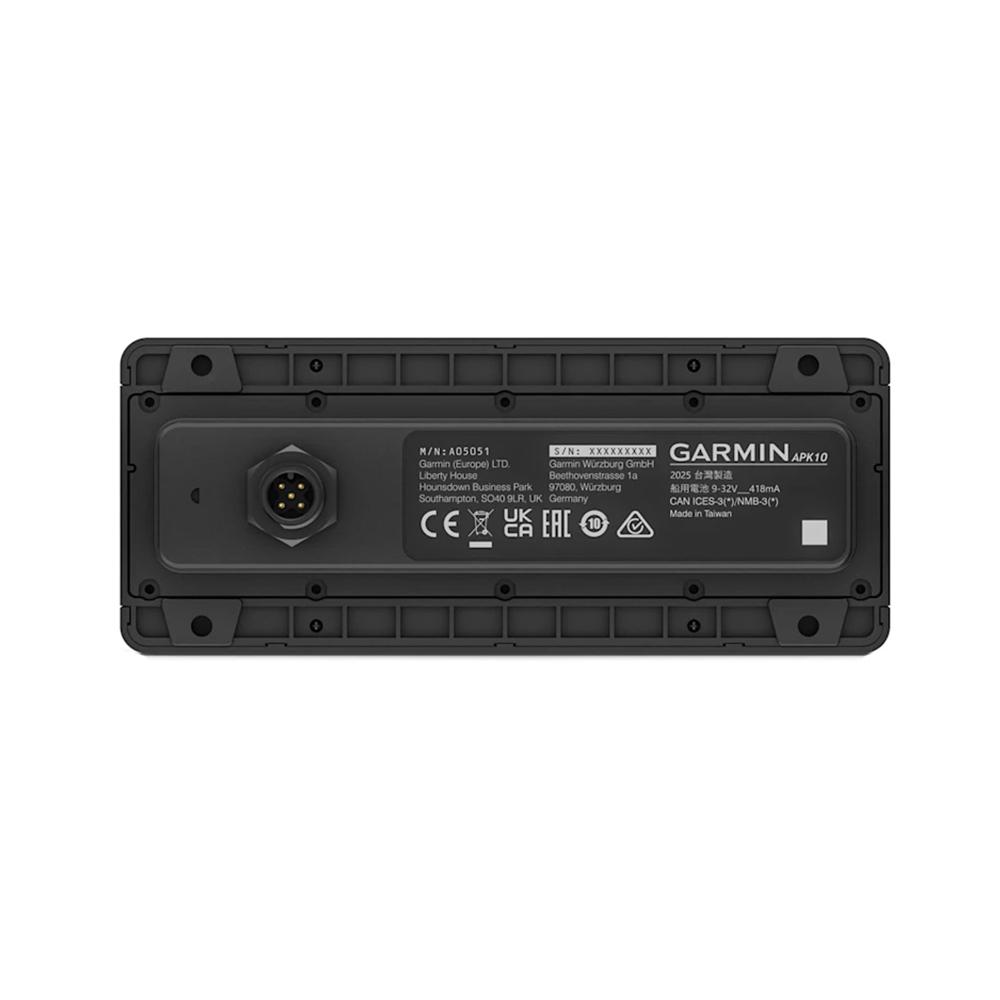

Connect to your NMEA 2000 network with a single port and cable for integration and power.

Compact Design

A low-profile design matches the height of your GHC 50 instrument and GPSMAP chartplotter. The APK 10 keypad accessory comes in horizontal and vertical mounting options to suit your new or existing helm.

In The Box:

• APK 10 autopilot keypad (horizontal)
• Backbone/drop cable (2 m) and T-connector for the NMEA 2000Network
• Mounting hardware (flushand surface)
• Documentation

Specifications:

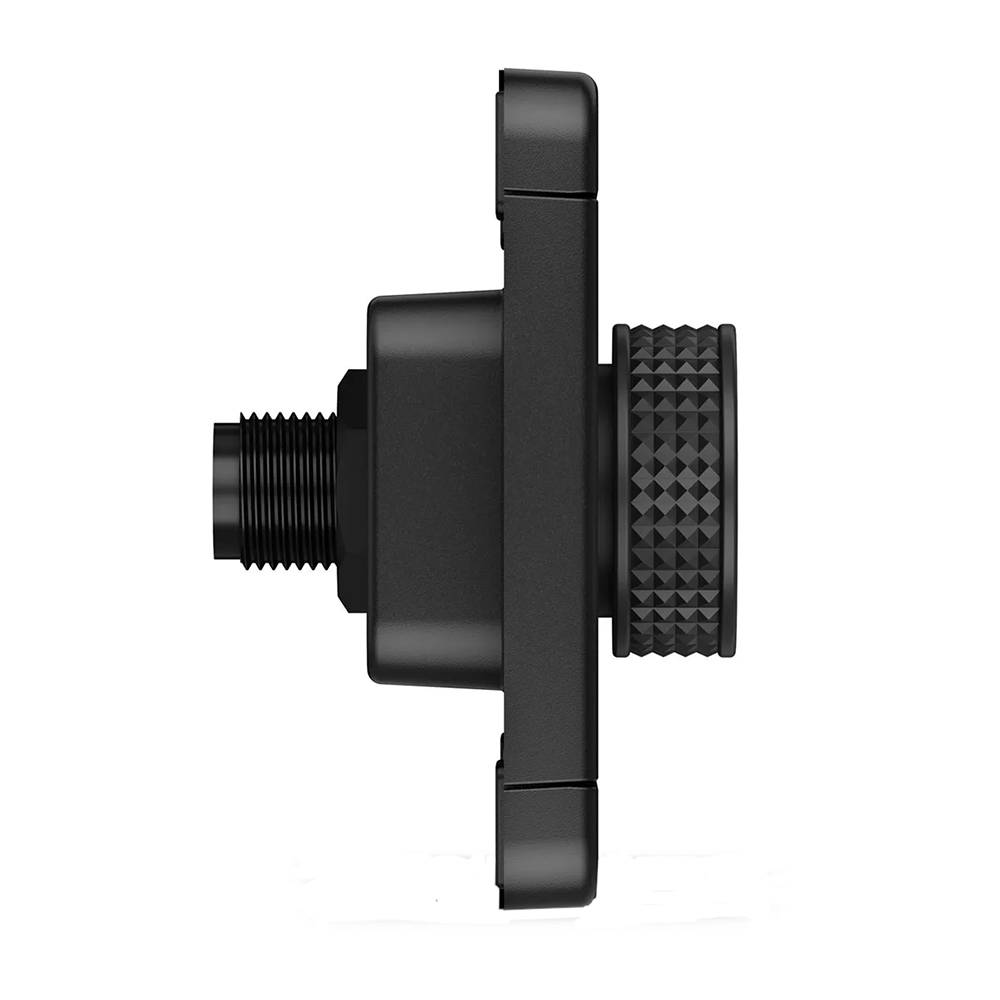

• Dimensions (WxHxD): Flush mount: 5.5 x 2.3 x 0.28 (139.7 x 57.4 x 7.0 mm) Surface mount: 5.5 x 2.3 x 0.65 (140.7 x 58.4 x 16.4 mm)
• Weight: Horizontal: 4.09 oz (116 g)
• Temperature range: From 5 to 158F (from -15 to 70C)
• Material: Fully-gasketed, high-impact plastic
• Water rating: IPX7
• Compass-safe distance: 4.5 (114 mm)
• Powered input: Powered supplied from the NMEA 2000 network
