Shakespeare 393 23′ Single Side Band Antenna
$401.95
PRODUCT DETAILS

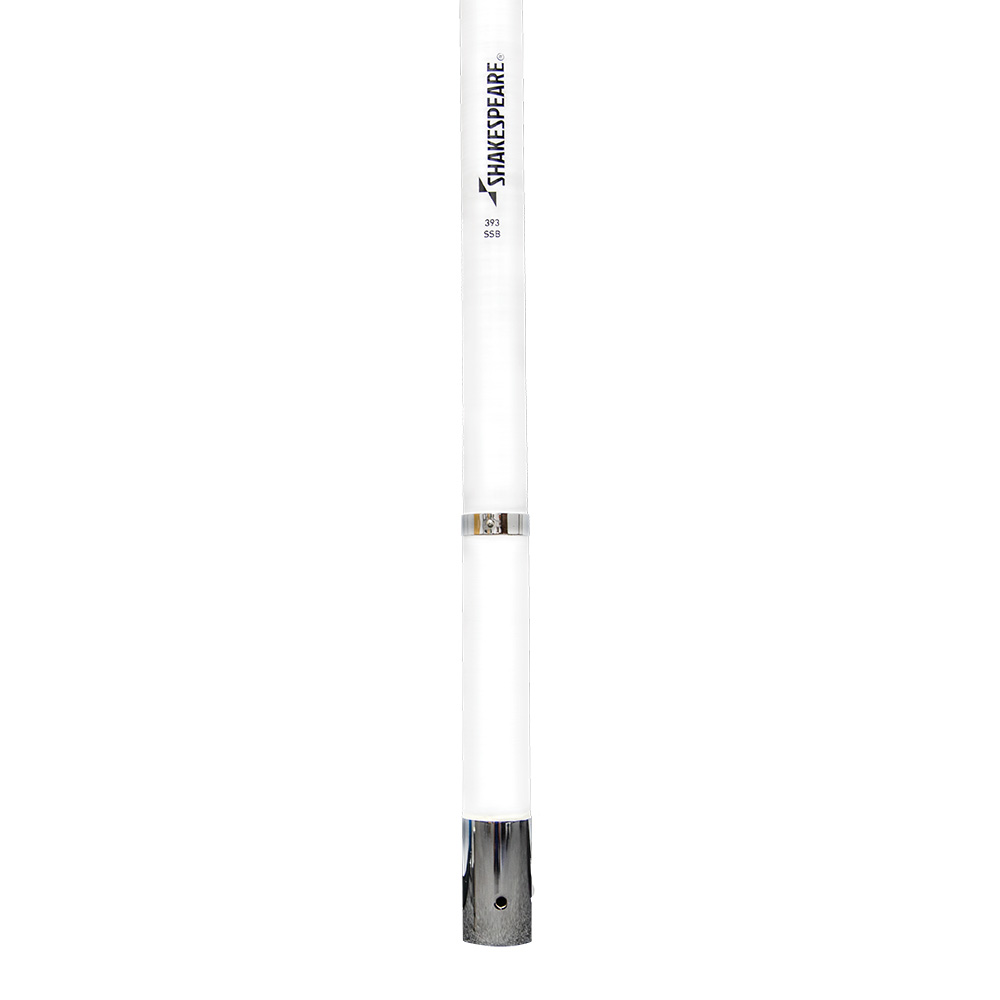

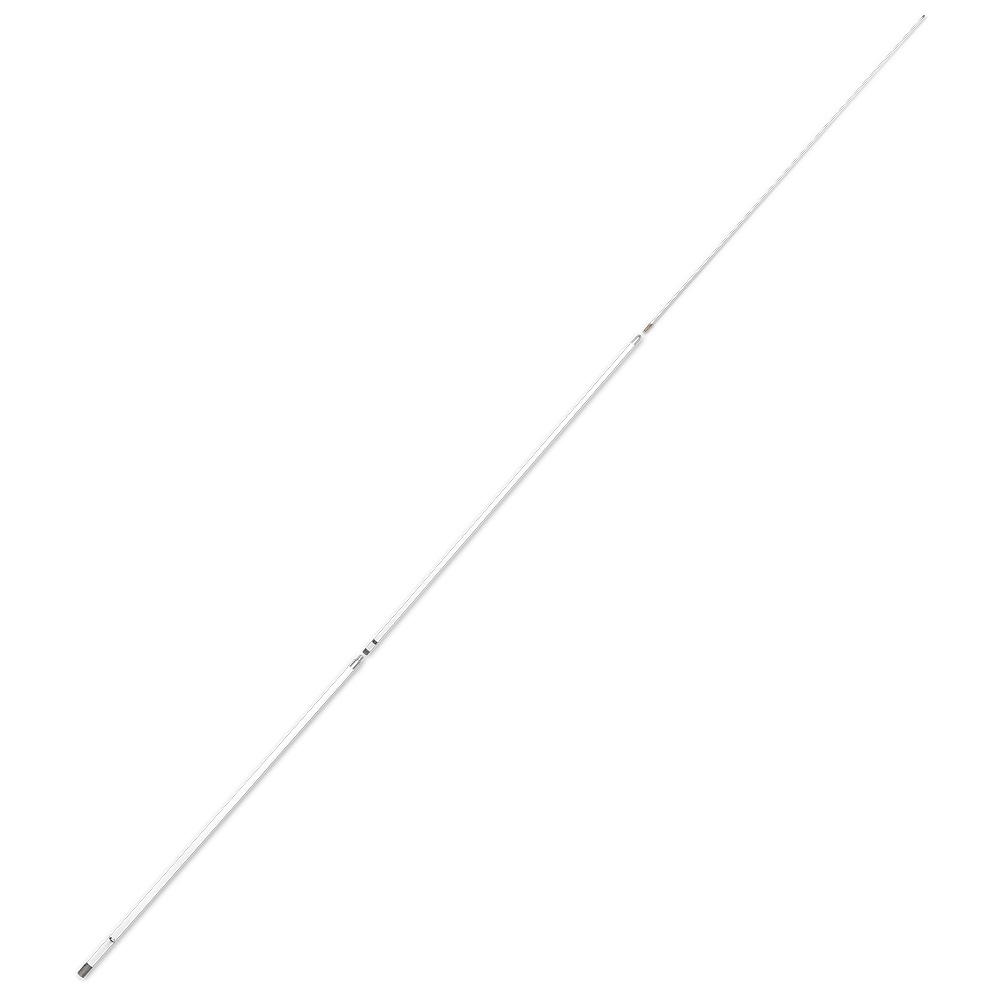

Shakespeare Style 393 SSB
23′ LENGTH
WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)
The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.
- Chrome-plated brass ferrules, bottom ferrule has 1-14 thread
- Side feed termination band
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
- Three sections: Base 92; Center 92; Tip 92
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | 2-30 MHz HF band with tuner |
| Bandwidth: | Resonant frequency 10.8 MHz |
| SWR: | N/A |
| Impedance: | (Ohms): N/A |
| Gain: | N/A |
| Max Input (Watts): | 1000 |
| DC Ground: | N/A |
| Termination: | Side Termination |
| Height (feet): | 23 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
SPECIFICATIONS
| Weight | 5.2 lbs |
|---|---|
| Dimensions | 3 × 3 × 3 in |
| truck_freight | No |
| oversized | Yes |
| upc | 719441600075 |
| brand | Shakespeare |
| part_number | 393 |
