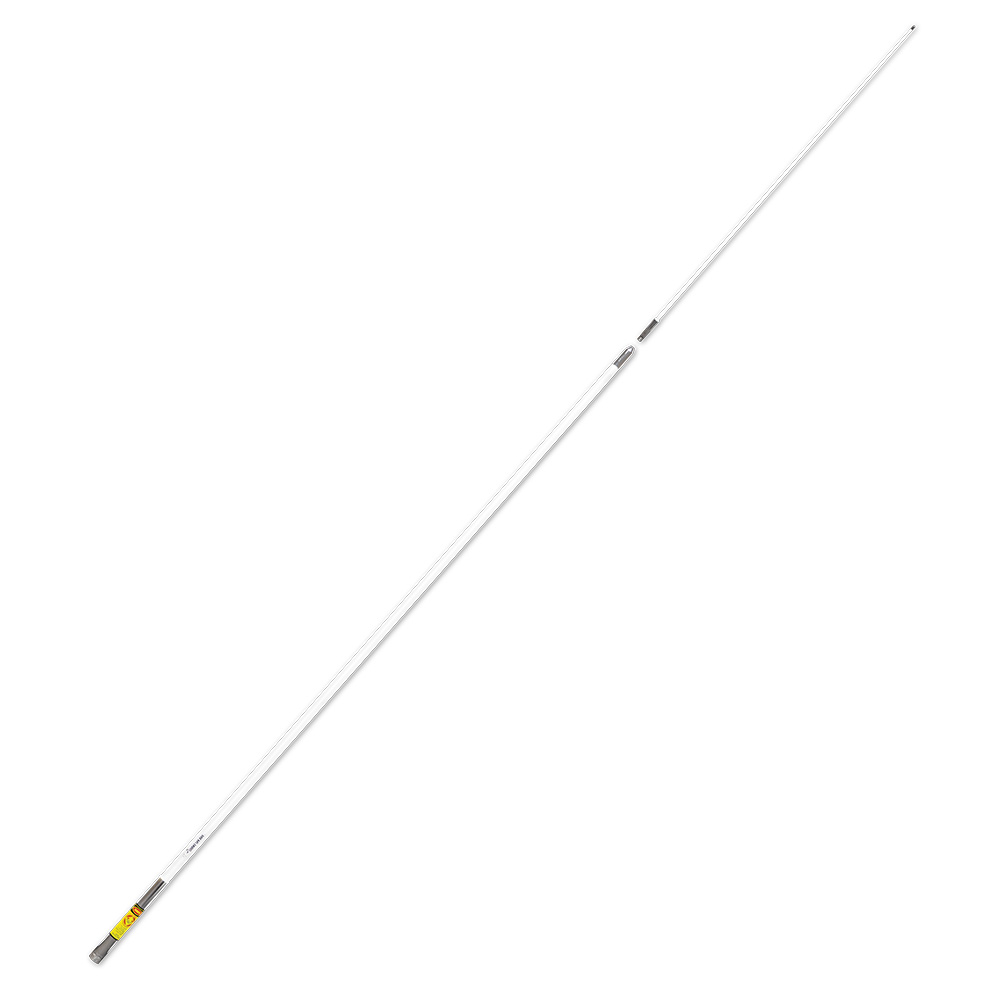

Shakespeare 399-1M 9’6″ VHF Antenna
$307.95
PRODUCT DETAILS
Style 399-1M VHF 6dB
Collinear Phased 5/8-wave with two coaxial chokes to suppress cable radiation
The Style 399-1M is the same as the 399-1, but it has a special sleeve for mast mounting. A professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don’t have room for one.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1-14 thread

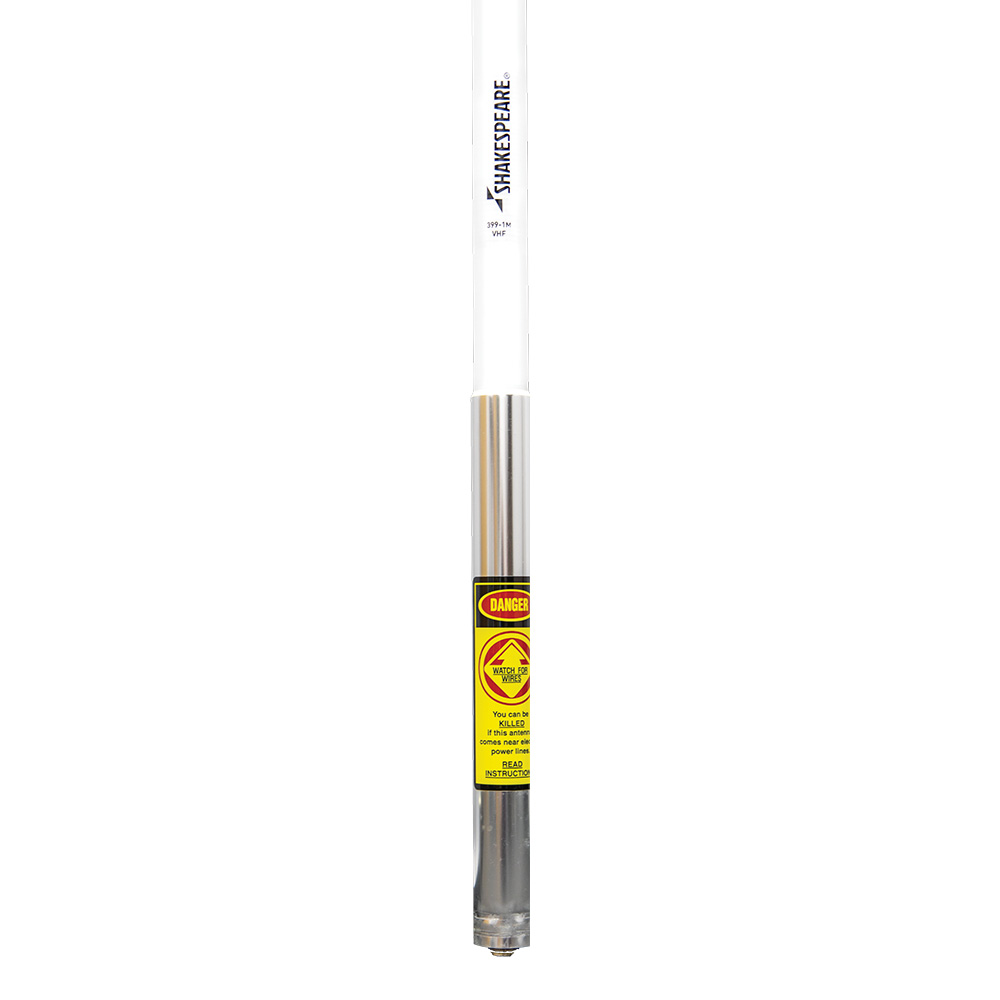

- Aluminum sleeve for mast mounting
- Suggested mount: 1-1/4 U-bolts are supplied. The 399-1M can be strapped to a larger mast using steel banding (not supplied)
- Two sections: Base 75; Tip 39 UPS shippable
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | (within 2.0:1 SWR): 5MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance: | (ohms): 50 |
| Gain: | 6 dB |
| Max Input (Watts): | 100 |
| DC Ground: | YES |
| Termination: | SO – 239 |
| Height (feet): | 9.5 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
SPECIFICATIONS
| Weight | 5.2 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| truck_freight | No |
| oversized | No |
| upc | 719441100032 |
| brand | Shakespeare |
| part_number | 399-1M |
