Shakespeare AIS 4ft Phase III Antenna
$407.95
PRODUCT DETAILS

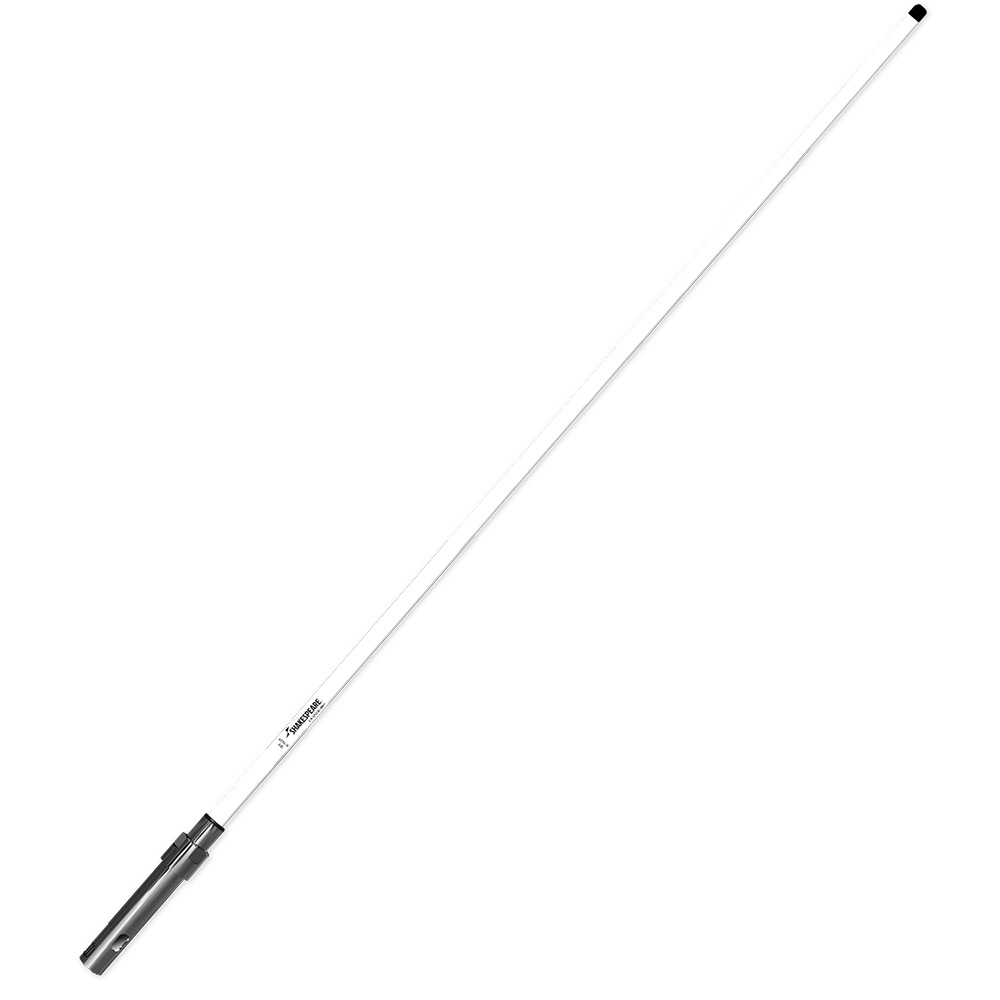

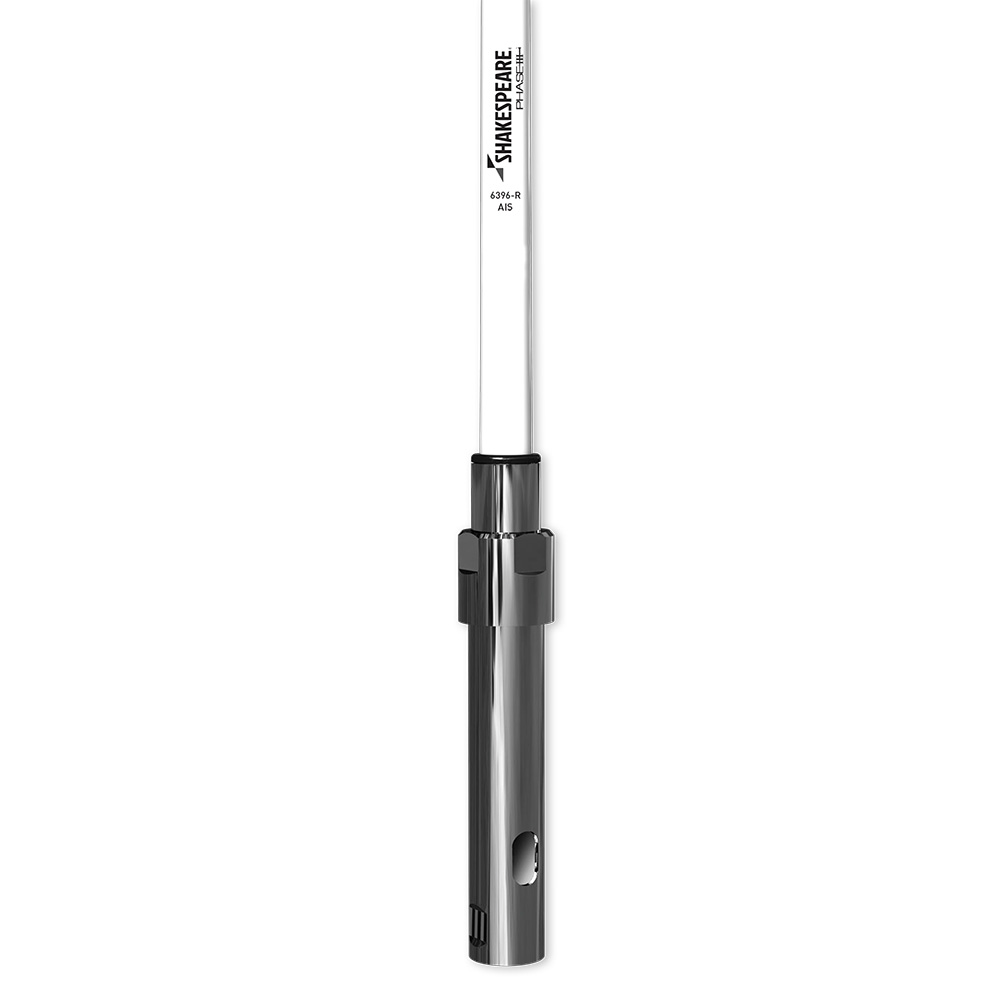

PHASE III 6396-AIS-R 4′ AIS Antenna 3dB Gain
Specially engineered for the extra bandwidth required by AIS transceivers, this Phase IIIT antenna enables reliable communication over marine VHF frequencies.
- Silver-plated outer conductor, copper inner conductor
- Stainless steel mounting sleeve
- SO-239/PL-259 connector
Specifications
- Max. Power Input: 50 watts
- SWR: Less than 1.5:1 at 162 MHz
- Bandwidth: 5 MHz within 2.0:1 VSWR
- Frequency: VHF AIS Marine Band
- DC Grounding: Yes
- Pattern: Omnidirectional
- Polarization: Vertical
SPECIFICATIONS
| Weight | 2 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| truck_freight | No |
| oversized | No |
| upc | 719441200688 |
| brand | Shakespeare |
| part_number | 6396-AIS-R |
Customer Reviews
PHASE III 6396-AIS-R 4′ AIS Antenna 3dB Gain
Specially engineered for the extra bandwidth required by AIS transceivers, this Phase IIIT antenna enables reliable communication over marine VHF frequencies.
- Silver-plated outer conductor, copper inner conductor
- Stainless steel mounting sleeve
- SO-239/PL-259 connector
Specifications
- Max. Power Input: 50 watts
- SWR: Less than 1.5:1 at 162 MHz
- Bandwidth: 5 MHz within 2.0:1 VSWR
- Frequency: VHF AIS Marine Band
- DC Grounding: Yes
- Pattern: Omnidirectional
- Polarization: Vertical
| Weight | 2 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| truck_freight | No |
| oversized | No |
| upc | 719441200688 |
| brand | Shakespeare |
| part_number | 6396-AIS-R |
