Shakespeare Galaxy 5226-XT 8′ Black VHF Antenna – 6dB Gain
$209.95
PRODUCT DETAILS

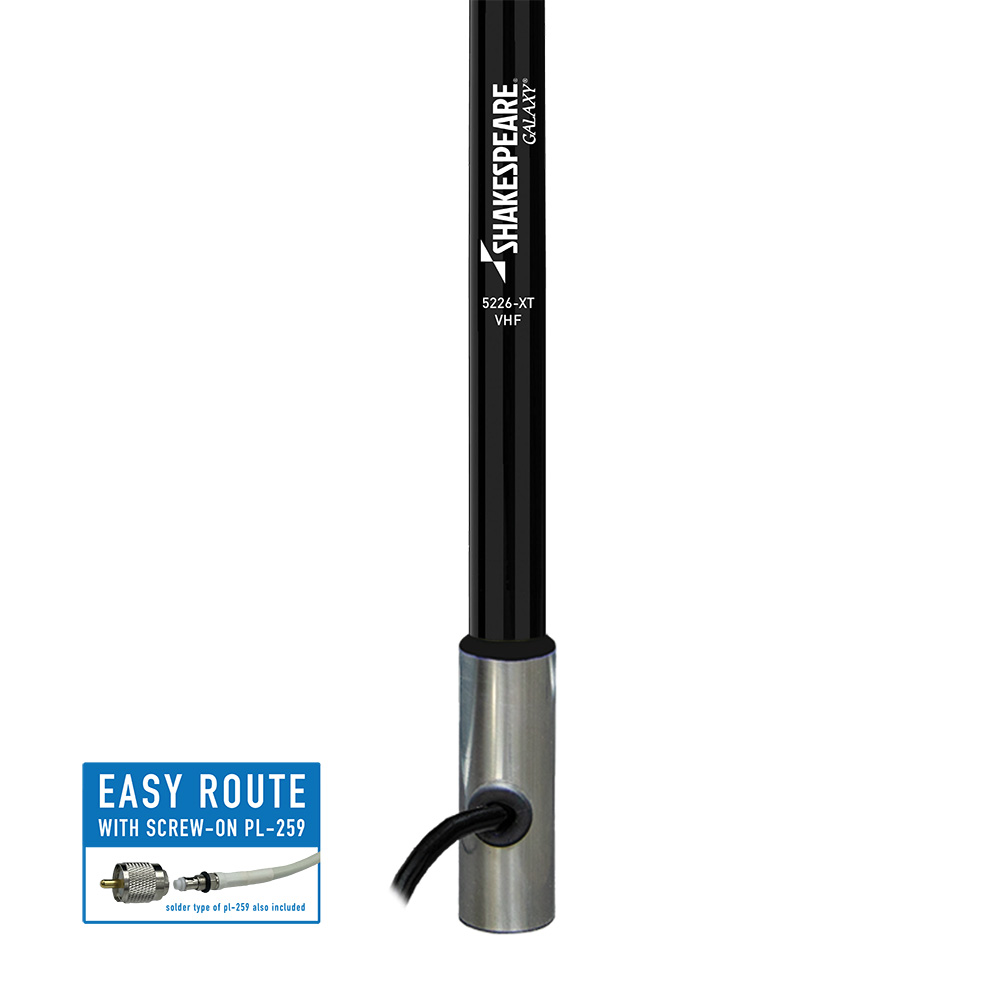

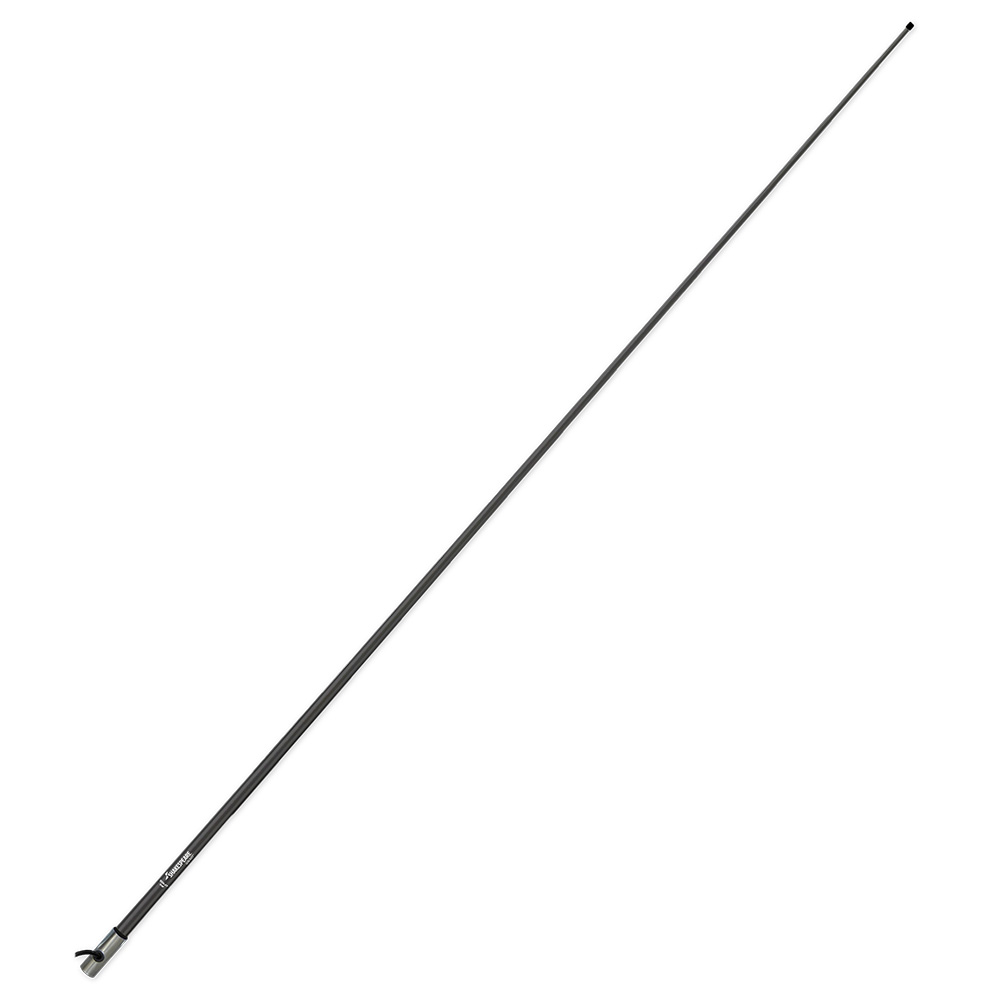

Galaxy 5226-XT 8′ Black VHF Antenna – 6dB Gain
EXTRA TOUGH!
This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It’s Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.
Features:
- Collinear-phased 5/8 wave elements
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1″-14 thread
- 20′ RG-8/X low-loss cable plus a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount
- One section
- Shakespeare Limited Warranty: 5 years
Technical Specifications:
- Frequency: VHF Marine Band
- Bandwidth: 3 MHz within 2.0:1 VSWR
- SWR: Mominally 1.5:1 at 156.8 MHz
- Impedance: 50 ohms
- Gain: 6 dB
- Max Input (Watts): 100 watts
- DC Ground: YES
- Height (feet): 8
- Polarization: Vertical
SPECIFICATIONS
| Weight | 2.4 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| truck_freight | No |
| oversized | No |
| upc | 719441200237 |
| brand | Shakespeare |
| part_number | 5226-XT |
