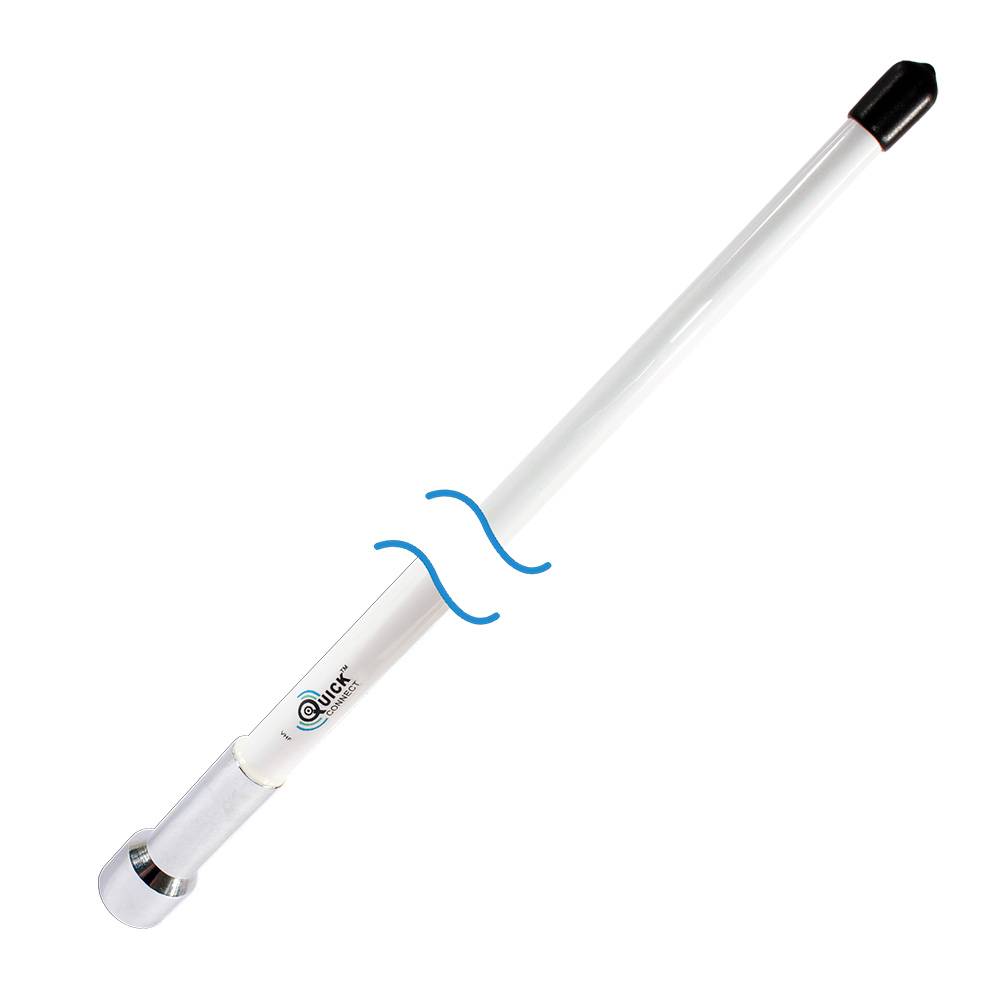

Shakespeare VHF 4′ QuickConnect 3dB f/QCM Series Mounts
$93.99
Availability: 12 in stock
PRODUCT DETAILS
VHF 4′ QuickConnect 3dB for QCM Series Mounts
QuickConnect antennas stem from the popularity of the quick connecting feature on Shakespeare’s high-end Phase III marine antennas, the QuickConnect product line brings you the ease of connecting and disconnecting your marine antenna in a more affordable line-up.
Features:
- QuickConnect System – Screw or unscrew the antenna to disconnect or connect
- Splash Protection Cap – Protects the connector on the mount when the antenna is disconnected
- Centerpin PL-259 Connector – An easy crimp-on connector
- Base connector included for use with QuickConnect mounts only
- Single Section antennas with VSWR of <1.5:1 at 156.8 MHz
- Maximum input power of 50W
- The bandwidth of 5 MHz within 2.0:1 VSWR
- Does not contain a built-in DC ground connection
SPECIFICATIONS
| Weight | 2.3 lbs |
|---|---|
| Dimensions | 3 × 3 × 3 in |
| truck_freight | No |
| oversized | No |
| upc | 719441173104 |
| brand | Shakespeare |
| part_number | QC-4-T |
Customer Reviews
VHF 4′ QuickConnect 3dB for QCM Series Mounts
QuickConnect antennas stem from the popularity of the quick connecting feature on Shakespeare’s high-end Phase III marine antennas, the QuickConnect product line brings you the ease of connecting and disconnecting your marine antenna in a more affordable line-up.
Features:
- QuickConnect System – Screw or unscrew the antenna to disconnect or connect
- Splash Protection Cap – Protects the connector on the mount when the antenna is disconnected
- Centerpin PL-259 Connector – An easy crimp-on connector
- Base connector included for use with QuickConnect mounts only
- Single Section antennas with VSWR of <1.5:1 at 156.8 MHz
- Maximum input power of 50W
- The bandwidth of 5 MHz within 2.0:1 VSWR
- Does not contain a built-in DC ground connection
| Weight | 2.3 lbs |
|---|---|
| Dimensions | 3 × 3 × 3 in |
| truck_freight | No |
| oversized | No |
| upc | 719441173104 |
| brand | Shakespeare |
| part_number | QC-4-T |
