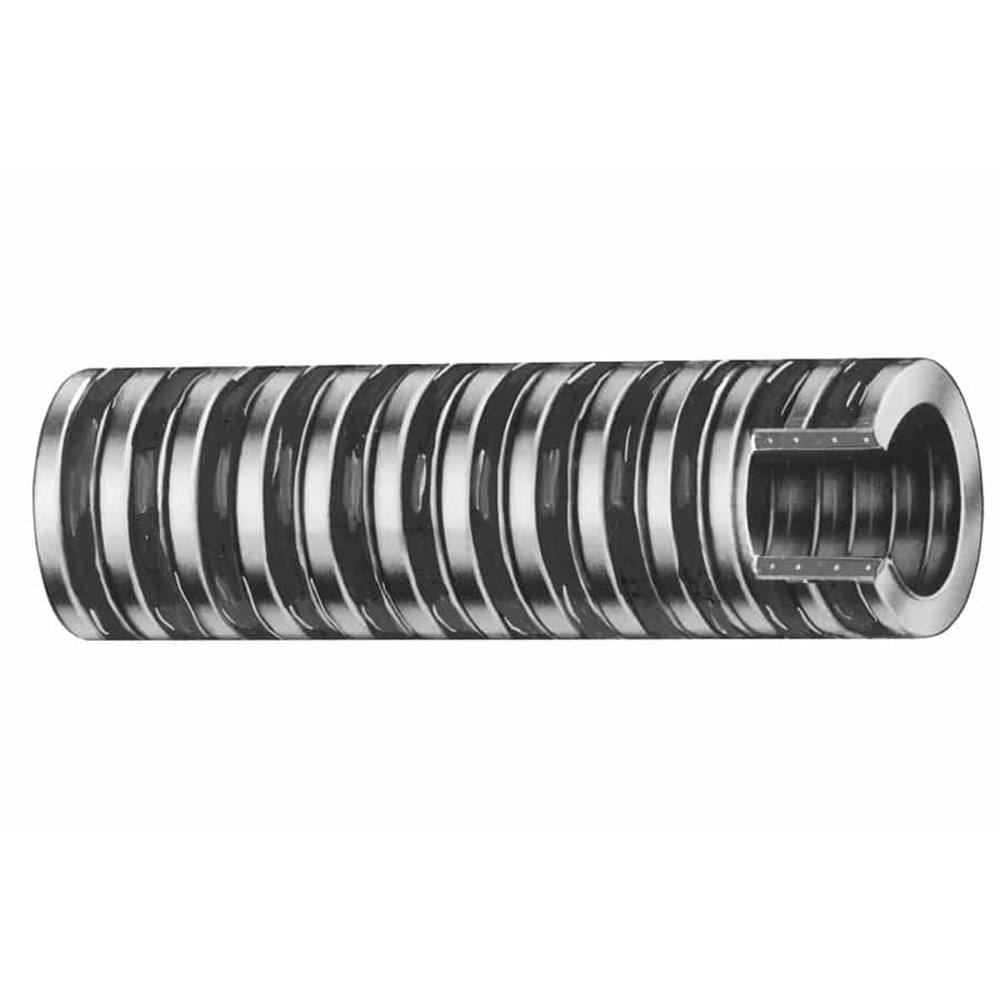

1-1/8″ Heavy Duty PVC Bilge Livewell Hose (FDA) – Clear with Black Helix – Sold by the Foot

Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.

Features:

• Sold by the foot
• Flexible, but the 147 series is less flexible than the 149 series of hoses

Application:

• Bilge and live well hose

Specifications:

• Tube Cover: Clear vinyl reinforced with black helix
• Color: Clear with black helix
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-49C)
• Inner Diameter: (inch) 1-1/8″ / (mm) 28.6
• Outer Diameter: (inch) 1.39″ / (mm) 35.4
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45
• Bend Radius: (inch) 3.5″ / (mm) 8.9

*Burst Pressure is 4 x Working Pressure

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
