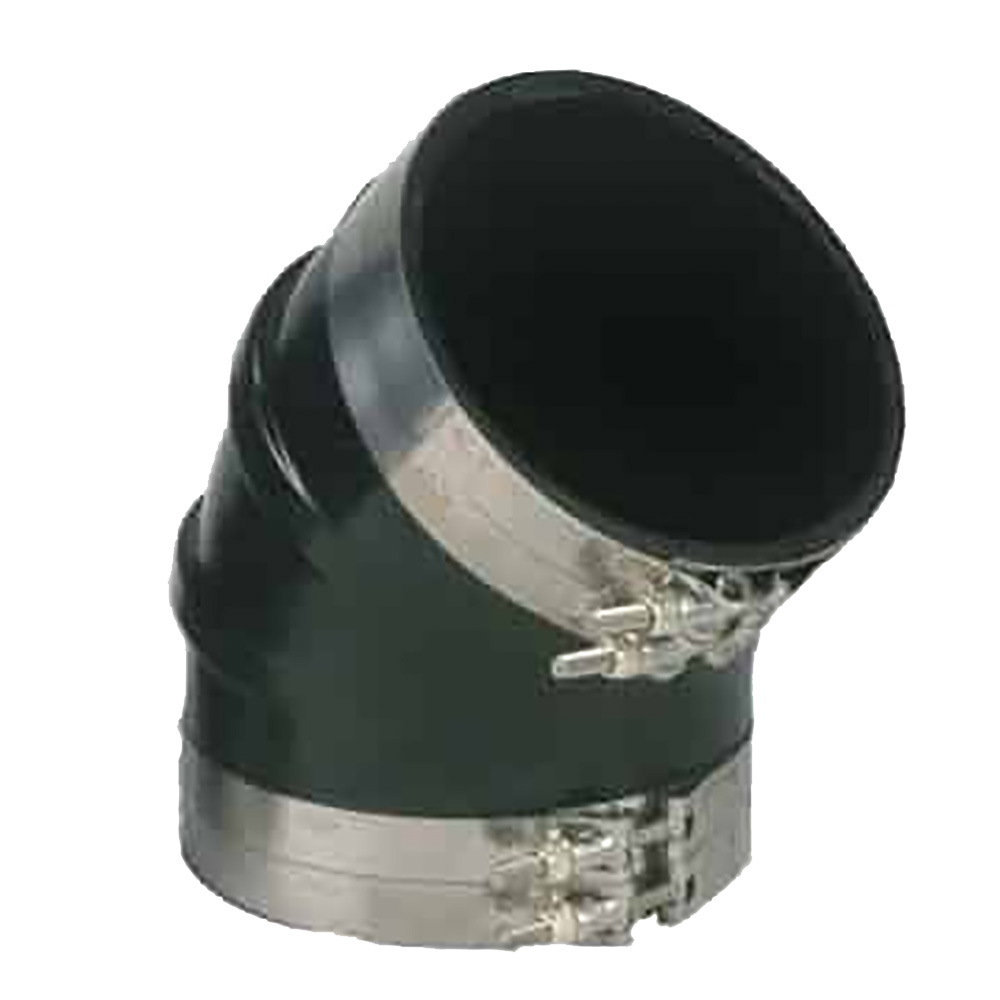

Trident Marine 4″ ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps
$87.95
PRODUCT DETAILS
4″ ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6 I.D. or bigger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel clamps are included
- This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC NMMA P-1 exhaust standards)
- Black high-temp EDPM rubber
Construction:
- Color: Black
- Reinforcement: Reinforcing ribs on 6 I.D. and above
- Temperature Range: up to 250F (121C)

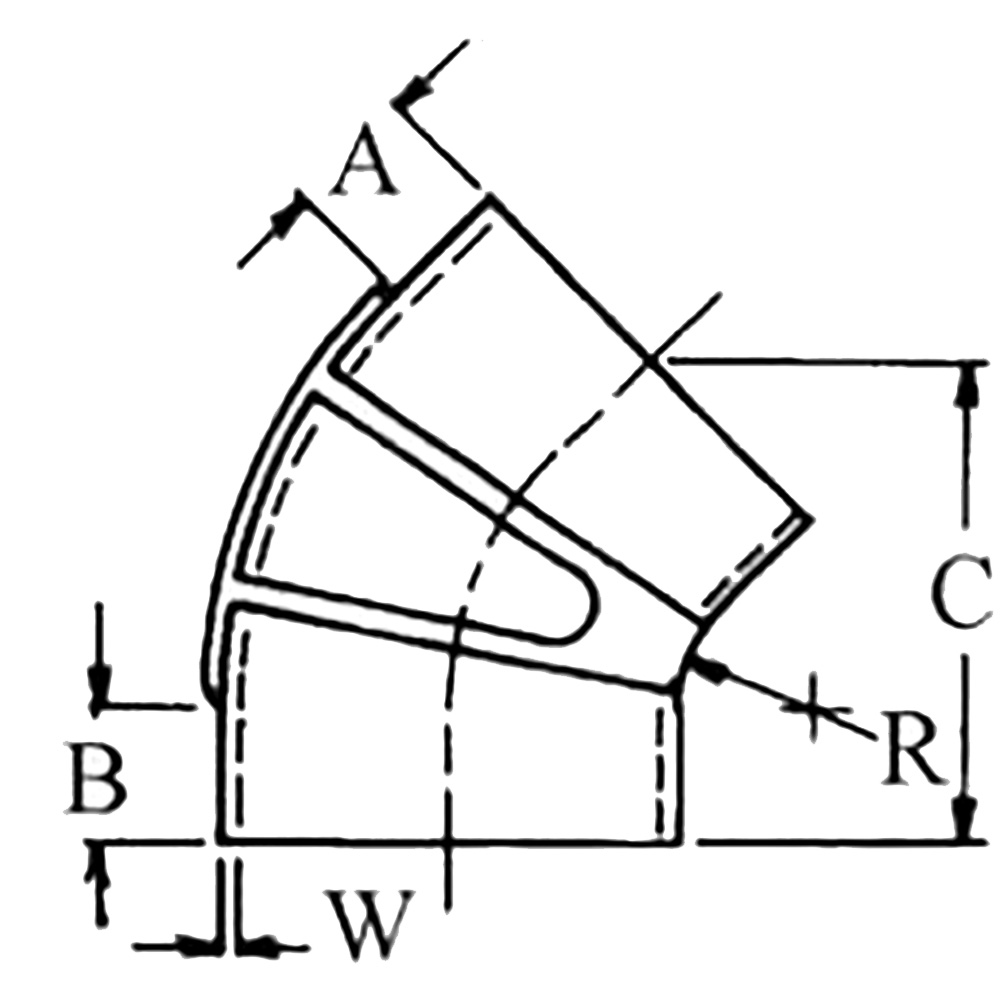

Specifications:
- Inner Diameter: (inch) 4 / (mm) 101.6
- Outer Diamter: (inch) 4.5″ / (mm) 114.3
- A: (inch) 1.5 / (mm) 38.1
- B: (inch) 1.5 / (mm) 38.1
- C: (inch) 5.5 / (mm) 139.7
- W: (inch) 0.25 / (mm) 6.35
- Elbow Degree: 45 degrees
- Weight: (Lb/Ea) 0.95 / (Kg/Ea) 0.43
SPECIFICATIONS
| Weight | 2.1 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
| truck_freight | No |
| oversized | No |
| upc | 704917000459 |
| brand | Trident Marine |
| part_number | TRL-445-S/S |
