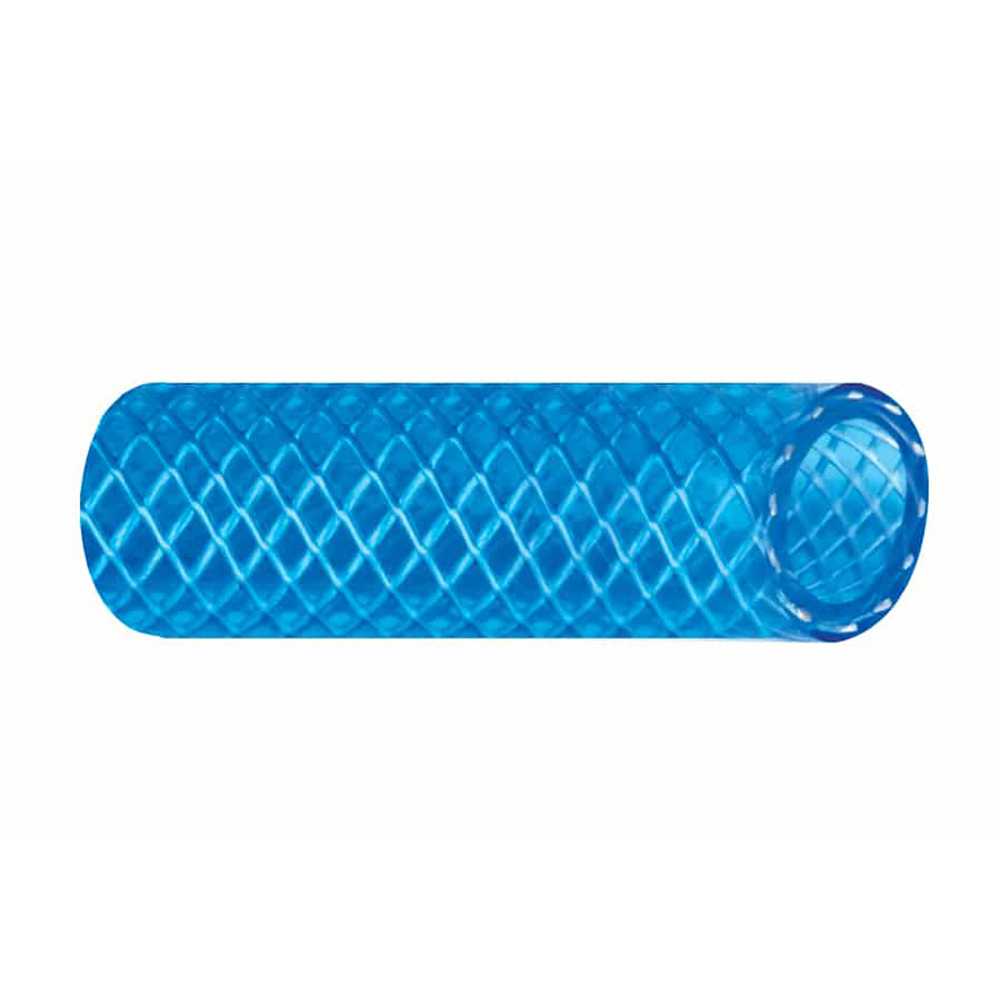

5/8″ Reinforced PVC (FDA) Cold Water Feed Line Hose – Drinking Water Safe – Translucent Blue – Sold by the Foot

Trident 165 Series Blue – polyester reinforced PVC hose for “Cold Water” feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4F (- 28C) and can handle pressures up to 250 psi (varies based on I.D size).

Features:

• Sold by the foot
• The Blue cover allows for easy identification of “Cold Water” lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

• Tube Cover: Clear FDA tube
• Color: Blue Transparent
• Reinforcement: Polyester
• Temperature Range: -18F to 149F (-28C to 65C)

Specifications:

• Inner Diameter: (inch) 5/8″ / (mm) 15.9
• Outer Diameter: (inch) .866 / (mm) 22.5
• Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
• Bend Radius: (inch) 1.26″ / (mm) 32

*Burst Pressure is 4 x Working Pressure
