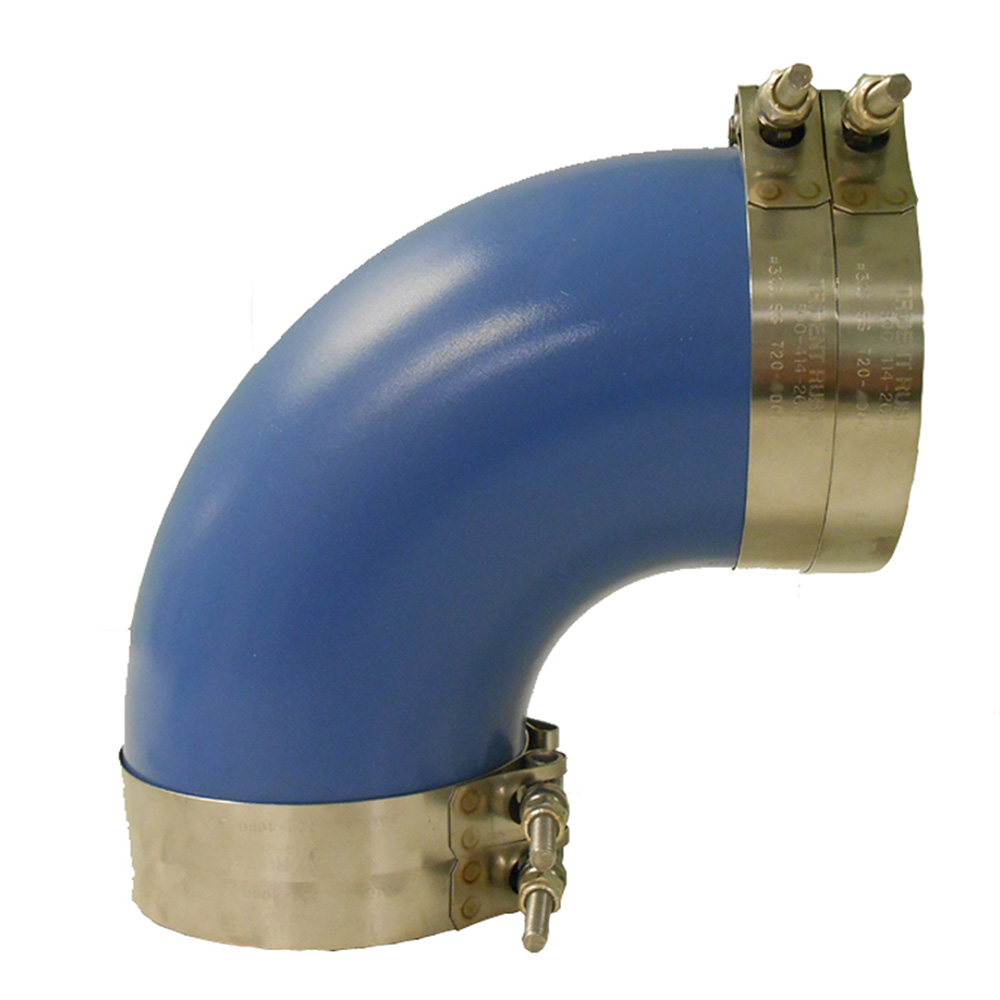

Trident Marine 6″ ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps
$202.95
PRODUCT DETAILS
6″ ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6″ I.D. or larger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel t-bolt clamps
- Very high temp silicone/EDPM blend rubber – molded
- This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC NMMA P-1) exhaust standards
- Blue very high-temperature silicone blended with EDPM rubber at 350F (177C) max continuous
Construction:
- Color: Blue
- Reinforcement: Reinforcing ribs on 6 I.D. and above
- Temperature Range: up to 350F (177C)
Specifications:
- Inner Diameter: (inch) 6 / 152.4 mm
- A: (inch) 7 / (mm) 178
- B: (inch) 7 / (mm) 178
- C: (inch) 2.25 / (mm) 57.2
- D: (inch) 2″ / (mm) 57.2
- R: (inch) 1.75 / (mm) 44.5
- W: (inch) 0.25″ / (mm) 6.4
- Elbow Degree: 90 degrees
SPECIFICATIONS
| Weight | 5 lbs |
|---|---|
| Dimensions | 10 × 10 × 8 in |
| truck_freight | No |
| oversized | No |
| upc | 704917002125 |
| brand | Trident Marine |
| part_number | 290V6000-S/S |
