UFlex Power A Electronic Control Package – Dual Engine/Single Station – Mechanical Throttle/Mechanical Shift w/Trim
$8,289.95
PRODUCT DETAILS
Power A MM21T – Electronic Control Package
Power A Mark II Electronics Control Systems
- Private Protocol can bus for data transmission
- Connection of multiple stations up to 4 controls
- Modular System
- Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
- Plug’N Play connectivity
- Automatic engines synchronization
- Dock Assist
- Fully programmable shift delays
MM21T Package Includes:

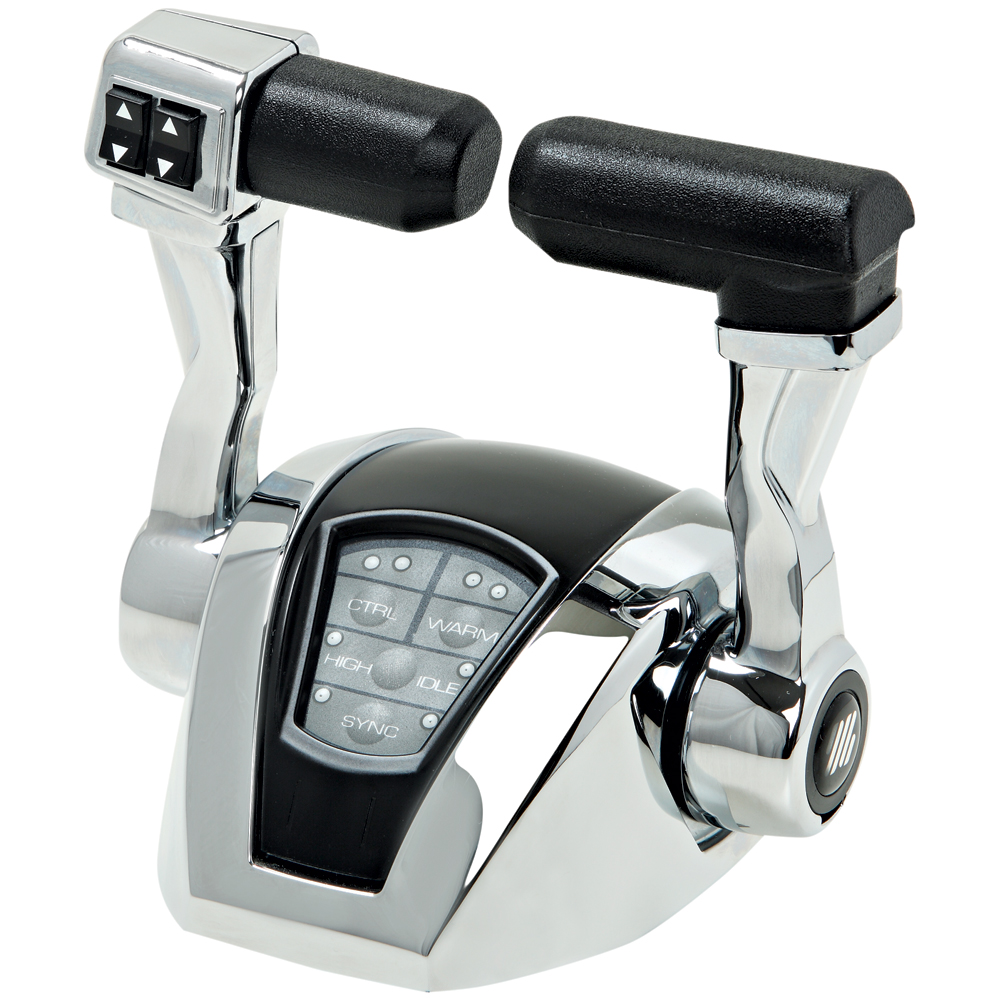

- 42012V – (1) PA2-B2T – Dual Lever Control w/Trim
- 42017F – (1) PA2-CU – Control Unit w/LED Diagnostc & Programming Screen
- 42027J – (4) PA2-MA – Electro Mechanical Actuatorf/Shift and/or Throttle
- 42028L – (1) PA2-NT – Network Terminator
- 42053K – (1) M-P3 – Main Power Supply Cable 9.8′
- 71021K – (2) CAN-10 – Network Connection Cable 33′
- 73639T – (3) CAN-1 – Network Connection Cable 3′
- 42026G – (1) PA2-PU – Power Supply Unit f/12V Systems
- 42056S – (4) M-PE1 – Power Extension Cable 3.3′
SPECIFICATIONS
| Weight | 31.05 lbs |
|---|---|
| Dimensions | 8 × 8 × 4 in |
| truck_freight | No |
| oversized | No |
| brand | Uflex USA |
| part_number | MM21T |
